Which Diamond Plate Trim Do You Need? H-Seam, J-Trim, Inside & Outside Corners Explained

Practical guide for garage wainscot, trailers, shops, and gyms — Online Diamond Plate / KC5280

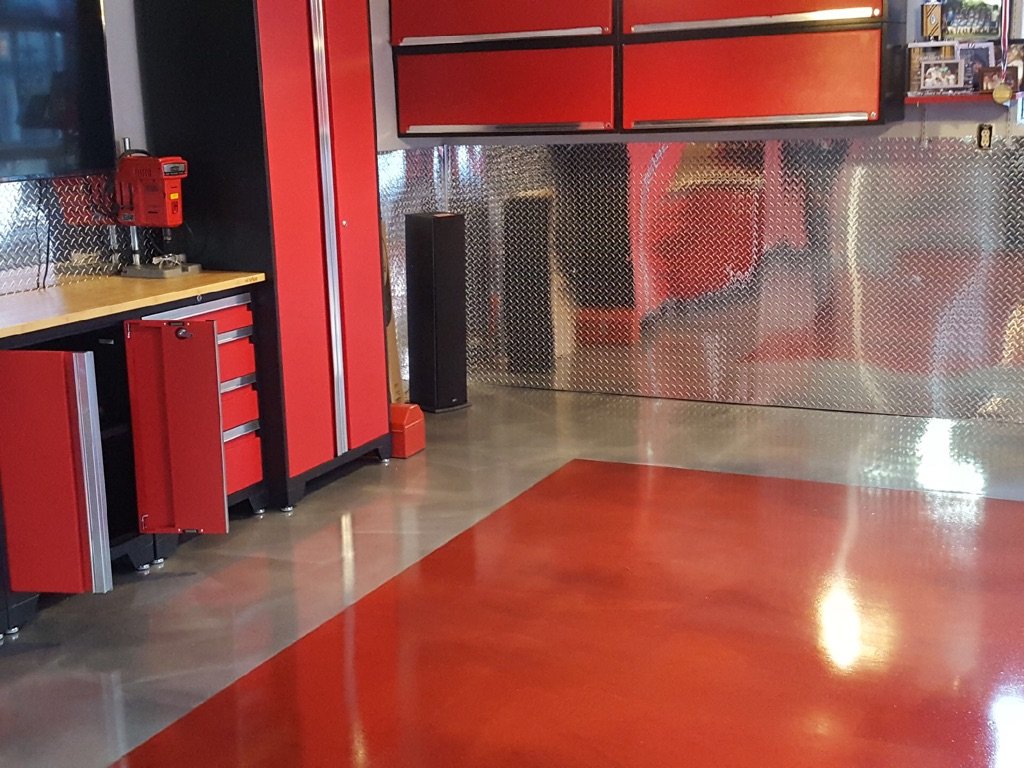

Embossed aluminum diamond plate sheets look sharp on their own. What separates a “sheet on the wall” from a finished install is almost always the trim. Matching H-Seam, J-Trim (edge cap), inside corners, and outside corners hide raw edges, lock panels into a clean line, and make the job look intentional — whether you are doing a DIY garage or a light commercial wall.

This guide walks through each profile, when to use vinyl vs aluminum, color matching (including the Race Red trim gap), length and shipping choices, and simple bill-of-materials examples you can copy.

Why edges look unfinished without trim

A .025" embossed aluminum sheet has a clean face and a thin edge. Butt two sheets together and you get a visible seam. Stop a run at a doorway and you get a raw cut. Wrap an outside corner without a profile and the edge chips light and catches on everything that walks by.

Trim covers seams (H-Seam), terminations (J-Trim / edge cap), and 90° turns (inside / outside corners). Skip it and you will probably reorder after the first weekend — add profiles with your embossed sheets and install once.

H-Seam: joining two panels cleanly

H-Seam splice molding is the profile you use wherever two diamond plate panels meet side-to-side or end-to-end. Think of it as a shallow channel that captures both panel edges and presents a consistent anodized face at the joint.

Use H-Seam when:

• You are running 4′×8′ or 4′×10′ sheets along a long garage wall and need vertical joints every sheet width
• You stack panels for taller coverage and need a horizontal splice
• You want a pro look without welding or riveting seams

Tips: Keep edges square; seat both sheets fully in the H before field-fastening; leave ~1/8" expansion gap in garages and shops that swing cold to hot.

See the full lineup in Trims & Moldings.

J-Trim / edge cap: finishing exposed edges

Aluminum Edge Cap J-Trim (J-molding) is the termination profile. One leg sits behind or against the panel; the face caps the exposed edge. Use it for:

• Top of garage or gym wainscot
• Bottom edge where you want a hard termination (not always required if the sheet meets flooring cleanly)
• Door and window openings
• End of a short accent wall or rock-guard run

J-Trim is extruded 6463 aluminum, anodized to match Online Diamond Plate sheet finishes, and sized for embossed wall panels (works with thicknesses up to about .063"). For most .025" embossed installs, it is the default edge finish.

Install order note: Dry-fit J-Trim at terminations first, set panels into the channel, then run H-Seam and corners — edges stay captured and the top of a wainscot floats less.

Inside vs outside corners

Inside corner trim

Use inside corner molding wherever two walls meet in an interior 90°. Each leg covers the panel edge at the corner so you do not try to bend a sheet into a perfect inside angle. Typical spots: garage corners behind the wainscot line, trailer interiors, shop bays.

Outside corner trim

Use outside corner molding on protruding corners — column wraps, freestanding walls, trailer door openings, gym half-walls. Outside corners take the most abuse from carts, bumpers, and equipment. If the corner sees real traffic, pair outside corner trim with a heavier corner guard for impact protection.

Quick rule: Inside = walls meet in; outside = walls meet out. Order both if your floor plan has any L-shapes or freestanding walls.

Soft CTA — confirm finishes first

Not sure which finish to run wall-to-wall? The Diamond Plate Sample Kit puts 4"×4" sheet samples (Polished, Gloss Black, Gunmetal Gray, Race Red, plus .045" polished) and short H-Seam, J-Trim, inside, and outside corner samples in your hands before you commit to full lengths.

Vinyl edge trim vs aluminum trim

Online Diamond Plate offers both aluminum profiles and flexible vinyl U-channel edge trim.

Practical pick: Use aluminum H-Seam, J-Trim, and corners for garage kits, gyms, and anything that should look built-in. Reach for vinyl edge trim when you need a quick top or end cap on a short run, or when aluminum corner geometry is overkill.

Color match — and the Race Red trim gap

Sheets are available in:

• Traditional Polished (mirror-like)
• Gloss Black
• Gunmetal Gray (also called Dark Metallic Gray on some pages)
• Race Red

Aluminum trim samples and stock moldings are offered in Polished, Gloss Black, and Gunmetal / Dark Metallic Gray. Race Red is a sheet finish; matching Race Red aluminum H-Seam / J-Trim / corner stock is not part of the standard trim lineup today. If you want Race Red walls:

• Plan on Polished or Gunmetal trim as a deliberate contrast, or
• Confirm current Race Red trim availability with support before you order large quantities

Hold sample sheets against sample trim before you lock a color scheme — that is what the Sample Kit is for.

Length & shipping: 2' / 4' / 6' / 7.83' vs 8' overlength

Trim is typically sold in 2', 4', 6', 7.83' (often labeled ~7'10"), and 8' lengths.

Shipping reality (read before you click 8'):

• Qualifying free-shipping language on the site calls out embossed .025" sheets plus trims and corner guards in shorter lengths (homepage FAQ references up to 7'10"; the shipping policy currently lists aluminum trims and corner guards up to 6 feet as free-ship eligible — sync that copy if you are implementing site UX).
• 8' molding is often treated as overlength: expect freight or non-free shipping even on large orders.
• For most garage wainscot at 4' height, 4' corner pieces + 6' top J-Trim cover the job without overlength freight.

Rule of thumb: Prefer 6' and under (or 7'10" where eligible) for parcel-friendly shipping. Reserve 8' for local pickup in Golden, CO, or when freight is already in the plan.

BOM examples you can copy

Quantities are planning starting points — measure your linear feet and openings, then round up.

1) Garage wainscot (typical 2-car, ~4' high)

• Embossed .025" sheets in 4′×8′ (count from wall LF ÷ 8, add waste)
• H-Seam: one per vertical joint between sheets
• Inside corners: one per inside wall corner at wainscot height
• Outside corners: only if you have freestanding walls or column wraps
• J-Trim: continuous top edge + door terminations
• Fasteners / adhesive from Fasteners, Adhesives & Tape

Or skip the spreadsheet: Garage Wall Panel Kits bundle sheets + H-Seam + J-Trim + inside corners sized for 1-, 2-, or 3-car layouts.

2) Trailer wall / rock-guard run

• .025" embossed sheets (2′×8′ or custom cuts for rock guards — $23 per cut at checkout)
• J-Trim at exposed ends
• Outside corners or corner guards at door and nose corners
• H-Seam only where full sheets meet mid-wall
• Screws or adhesive rated for the substrate (plywood, metal skin)

3) Gym / high-traffic perimeter

• .025" embossed sheets (Gloss Black or Gunmetal are popular)
• Full aluminum trim set (H, J, inside, outside) — skip vinyl for abuse zones
• Outside corners + corner guards on equipment-facing corners
• Prefer adhesive for a fastener-free face, or screws if panels must be replaceable
• Rounded / capped edges for safety on exposed ends

Ready to finish the edges

• Shop Trims & Moldings — H-Seam, J-Trim, inside & outside corners
• Order Embossed Aluminum Diamond Plate Sheets (.025", Polished / Gloss Black / Gunmetal / Race Red)
• Bundle with a Garage Kit when you want sheets + trim pre-counted
