Black Diamond Plate Sheets: Sizes, Uses and Matching Trim

Q: What thickness is your black diamond plate?

.025 inch embossed 3104 aluminum in Gloss Black.

Q: What sizes do black diamond plate sheets come in?

2x8, 4x8 and 4x10 feet. They weigh 5.7, 11.3 and 14.1 lbs.

Q: Can I use black diamond plate on a floor?

The .025 inch sheets are for walls and low-impact use. For floors and ramps use our heavy-duty .045 to .125 inch plate.

October 21, 2026

Black diamond plate is one of our best sellers. People pick it when they want the toughness of diamond plate but don't want a lot of shine. It looks clean, it hides scuffs and it goes with just about anything.

What our black diamond plate sheets are

Our black diamond plate sheets are .025" embossed aluminum made from 3104 aluminum, finished in Gloss Black. Embossed means the diamond pattern is pressed into the sheet, so you get the look of diamond plate without the weight of tread plate.

Gloss black diamond plate sheets on shop shower walls — Gloss Black in a shop shower, Chicago Heights, IL

Sizes and weights

Gloss Black comes in all three sizes, same as our other colors:

2'x8' (24"x96"), 5.7 lbs
4'x8' (48"x96"), 11.3 lbs
4'x10' (48"x120"), 14.1 lbs

One person can carry a full sheet, hold it on a wall and fasten it. Need it smaller? We make square cuts for $23 a cut.

Where people use black diamond plate

Customers use our black sheets for:

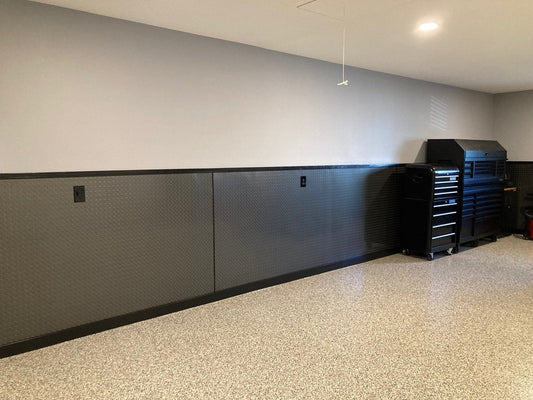

Garage walls and wainscot
Shop showers and wash areas
Gym counters and fitness centers

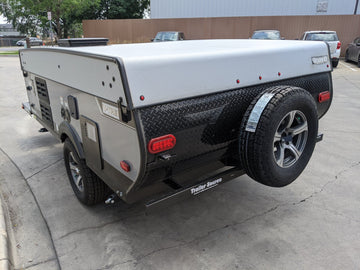

Rock guards on campers and trailers
Trailer siding and storage areas

Black diamond plate on the front of a butcher-block counter in the Industrial Washer Services showroom — Counter front in the Industrial Washer Services showroom

Black diamond plate on a gym front counter — Black front counter at PWRBLD Gym, King of Prussia, PA

Black diamond plate backsplash behind the hand sink and 3-compartment sink in a food truck — Food truck sink backsplash

Black diamond plate wall around vending and change machines in a laundromat — Vending wall in a laundromat

Black diamond plate on the lower body and fenders of a teardrop camper — Teardrop camper lower skirt and fenders

Floors and heavy use

The .025" black sheets are made for walls and low-impact jobs. For floors, ramps and anything that takes a beating, go with our heavy-duty aluminum diamond plate from .045" to .125".

Need something heavier? We sometimes have black .040" sheets on our Deals page, available for wholesale and local pickup.

Cutting black diamond plate

An electric metal shear is the best tool for long cuts. Tin snips work fine for short cuts and notches. A grinder with a metal cutting wheel also works. Every sheet ships with a light-tack PVC film on the face, so leave it on while you cut and install to protect the finish.

Matching black trim and screws

We carry black trim so the job looks finished:

H-seam splice molding to join sheets
Outside corner and inside corner molding
J-trim edge cap for exposed edges
Black diamond plate screws

See all of it in our trim and moldings collection.

Shipping and bulk orders

We ship from Golden, Colorado. Sheets ship rolled and boxed, and orders over $600 ship free. Buying more than 20 sheets? Use our wholesale products. We have 346 reviews at 4.9 stars.

Want to compare all four colors and thicknesses? Read our guide to thin aluminum diamond plate sheets.

Black diamond plate FAQ

What thickness is your black diamond plate?

.025" embossed 3104 aluminum in Gloss Black.

What sizes do black diamond plate sheets come in?

2'x8', 4'x8' and 4'x10'. They weigh 5.7, 11.3 and 14.1 lbs.

Can I use black diamond plate on a floor?

The .025" sheets are for walls and low-impact use. For floors and ramps use our heavy-duty .045" to .125" plate.

How do I cut black diamond plate?

Use an electric metal shear for long cuts, snips for short cuts, or a grinder with a metal cutting wheel. We also make square cuts for $23 a cut.

Do you sell black trim to match?

Yes. We sell black H-seam, inside and outside corners, J-trim and black screws.

Do you offer free shipping?

Yes, on orders over $600. Sheets ship rolled and boxed from Golden, Colorado.

Shop Aluminum Diamond Plate Sheets by Thickness

Choose from .025", .045", .063", and .125" thick aluminum diamond plate sheets. Our .025" embossed diamond plate is lightweight, flexible, and great for decorative wall panels, garages, trailers, shops, and wainscoting. For more durability and impact resistance, choose .045" or .063" thick diamond plate. For heavier-duty applications where strength and rigidity matter, .125" thick aluminum diamond plate is the thickest sheet we stock.
