How to Attach Embossed Diamond Plate to Garage & Shop Walls (Adhesive, Tape, or Screws?)

Install guide for .025" embossed aluminum wall panels — Online Diamond Plate / KC5280

Embossed .025" aluminum diamond plate is light enough for a one-person garage install — if you pick the right attachment method and respect the thin gauge. This guide covers what .025" needs, construction adhesive, high-bond tape, screws (and how to hide dimples with trim), outlet cutouts, unroll tips, install order with trim, gyms and high-traffic walls, and when a Garage Kit saves time.

What .025" embossed sheets need from a fastener system

.025" embossed sheets are wall and utility panels, not structural plate. They:

• Flex more than heavy-duty gauges
• Show screw dimples if you overdrive fasteners
• Bond well to clean drywall, painted walls, plywood, concrete, and masonry with the right adhesive
• Ship rolled — flatten before you commit to a final stick

Your attachment method should either (a) spread load across the sheet (adhesive / tape grid) or (b) use fasteners carefully and hide edges in trim. Mixing methods is fine: tape to position, adhesive for permanence, or screws at studs with adhesive in the field.

Shop the hardware in Fasteners, Adhesives & Tape alongside your embossed sheets.

Construction adhesive — clean face, permanent bond

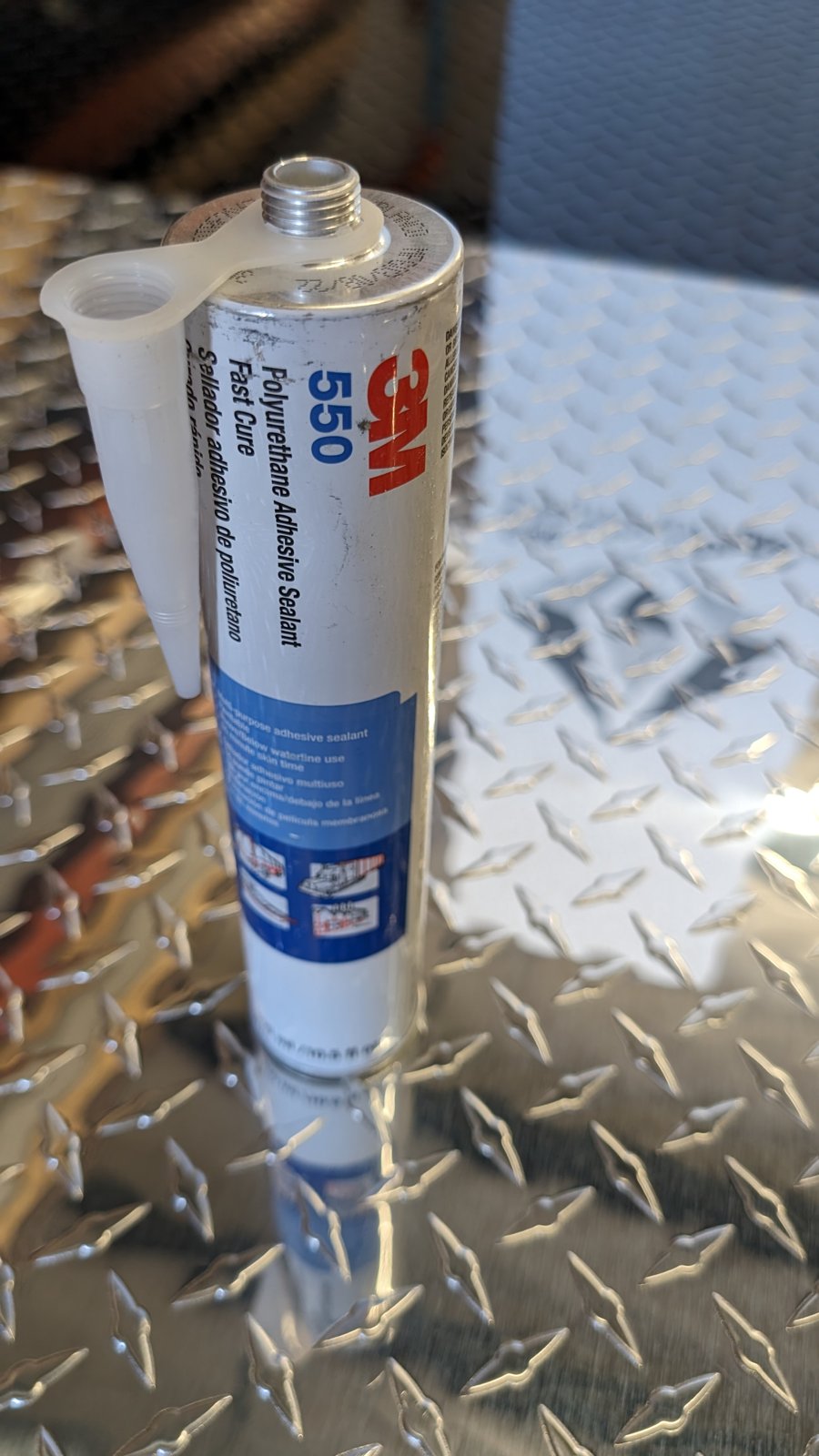

3M 550 polyurethane construction adhesive (10.5 oz tube, standard caulk gun) is the go-to for a fastener-free face. It bonds aluminum diamond plate to drywall, painted walls, concrete, masonry, and plywood without mixing or special primers on most surfaces.

Why it fits .025" installs:

• No screw heads breaking up the diamond pattern
• Flexible polyurethane chemistry handles garage temperature swings
• Open time lets you level a sheet before the bond locks

Practice tips:

1. Dry-fit every panel with trim in place before you gun adhesive.
2. Apply beads in a pattern that supports the field (vertical beads or a loose grid — follow the product page guidance).
3. Leave about 1/8" expansion gap at edges so aluminum can move with temperature. Skipping this is a common cause of buckling in unheated garages.
4. Support the sheet until initial grab — temporary screws or braces are fine; remove them later if you want a clean face.

Adhesive is the right call for showrooms, finished garages, and any wall where removability does not matter. Panels bonded this way are effectively permanent.

High-bond / double-sided tape — fast DIY positioning

Online Diamond Plate carries 1" double-sided tape tuned for embossed plate and a heavy-duty double-sided acrylic tape. Tape is the fastest path for residential, low-to-medium traffic walls and accent runs.

How installers use it well:

• Apply tape in a roughly 1-foot grid on the back of the sheet
• Check fit before peeling the second liner
• Press firmly; thickness helps on lightly textured walls
• For commercial or high-traffic walls, combine tape with screws or adhesive — do not rely on tape alone where carts and equipment hit daily

Honest limits: Quality double-sided tape is effectively non-removable without damaging wall texture. Treat it as permanent. It is excellent for speed; it is not a gym-perimeter strategy by itself.

Screws — secure and removable (mind the dimples)

Diamond Plate Screws (drywall / wood / metal-stud friendly pan heads) and Teks #8 self-drillers (metal-to-metal) give you a mechanical install you can reverse later.

Dimple risk on .025": Over-tightening pulls a visible dish into the thin embossed face. Drive until snug, then stop. Prefer screws near edges that will sit under or beside trim (J-Trim, H-Seam, corners) so any head or slight pull is visually absorbed. Many installers put screws on a wider spacing in the field and rely on adhesive or tape between them.

If you need removable panels (rental shop, future access), screws win. If you need a show finish, adhesive wins.

Outlet cutouts and one-person unroll

Unroll first

Sheets arrive rolled in a heavy corrugated box. Unroll on a clean floor, PVC film still on. Let the sheet relax; weight the corners. Fighting curl while adhesive is open is how panels go crooked.

Outlet and switch cutouts

1. Map box locations on the wall; transfer to the sheet (measure twice).
2. Cut with a jigsaw, snips, or hole saw as appropriate — film still on.
3. Deburr the cut; dry-fit the sheet.
4. Optional: finish with aluminum switch plates / outlet covers in polished finish for a matched look.

One person can handle a 4'×8' .025" sheet on a garage wall with tape or adhesive if the sheet is pre-flattened and trim channels are waiting. Two people still make long 4'×10' runs easier.

Install order with trim (recommended sequence)

A clean wall almost always follows this order:

1. Prep — walls clean, dry, and sound; mark wainscot height.
2. Dry-fit trim — J-Trim at top terminations and door edges; inside/outside corners at 90°s.
3. Dry-fit sheets — confirm cuts, outlets, and H-Seam locations.
4. Set termination trim — J-Trim and corners that capture panel edges.
5. Hang sheets — adhesive, tape, and/or screws; slide edges into channels.
6. Install H-Seam — at every panel joint.
7. Final fasten / wipe — peel PVC film; clean fingerprints.

Ordering matching profiles from Trims & Moldings with the sheets beats a second shipping wait after you realize edges look unfinished.

Gyms and high-traffic walls

Gym perimeters, physical therapy corridors, and shop aisles need impact thinking:

• Prefer aluminum trim over vinyl edge trim
• Add corner guards on outside corners that see bumpers and plates
• Use adhesive for a continuous face, or screws if panels must swap after damage
• Cap every exposed edge — rounded / finished edges matter for safety
• Gloss Black and Gunmetal hide scuffs differently than Polished; sample first

.025" embossed is impact-resistant for wall abuse; it is still a wall panel. Plan replaceable sections in the highest-hit zones if your facility takes daily cart traffic.

When to buy a Garage Kit instead of à la carte

Buy a Garage Wall Panel Kit when:

• You are covering a 1-, 2-, or 3-car garage at ~4' wainscot height
• You want sheets + inside corners + H-Seam + J-Trim pre-counted
• You would rather not spreadsheet linear feet of molding

Stay à la carte when:

• The layout is irregular (many doors, partial walls, trailer, gym only)
• You need Race Red or a non-kit finish mix
• You already have trim on hand and only need sheets or adhesive

Either path: confirm color with a Sample Kit before you commit to a full wall.
