Wholesale Embossed Aluminum Diamond Plate Sheets - Wall, Trailer & Utility Grade

Wholesale .025" Embossed Aluminum Diamond Plate Sheets

OnlineDiamondPlate.com's best-selling diamond plate sheet — now available at wholesale pricing for contractors, fabricators, retailers, and installers. The .025" embossed aluminum diamond plate sheet is the right choice for the vast majority of wall, wainscoting, trailer, and decorative diamond plate applications. Lightweight, easy to cut and install, available in four anodized finishes including Race Red, and priced for volume. Minimum order of 20 sheets per variant.

Every sheet ships with a PVC protective peel-off film on the face. Leave it on during transport and installation — peel it off when the job is done and the finish underneath is pristine.

Looking for smaller quantities? Shop our retail diamond plate sheets here.

Not sure if .025" embossed or heavy duty raised-knob diamond plate is right for your project? Compare all sheet options here.

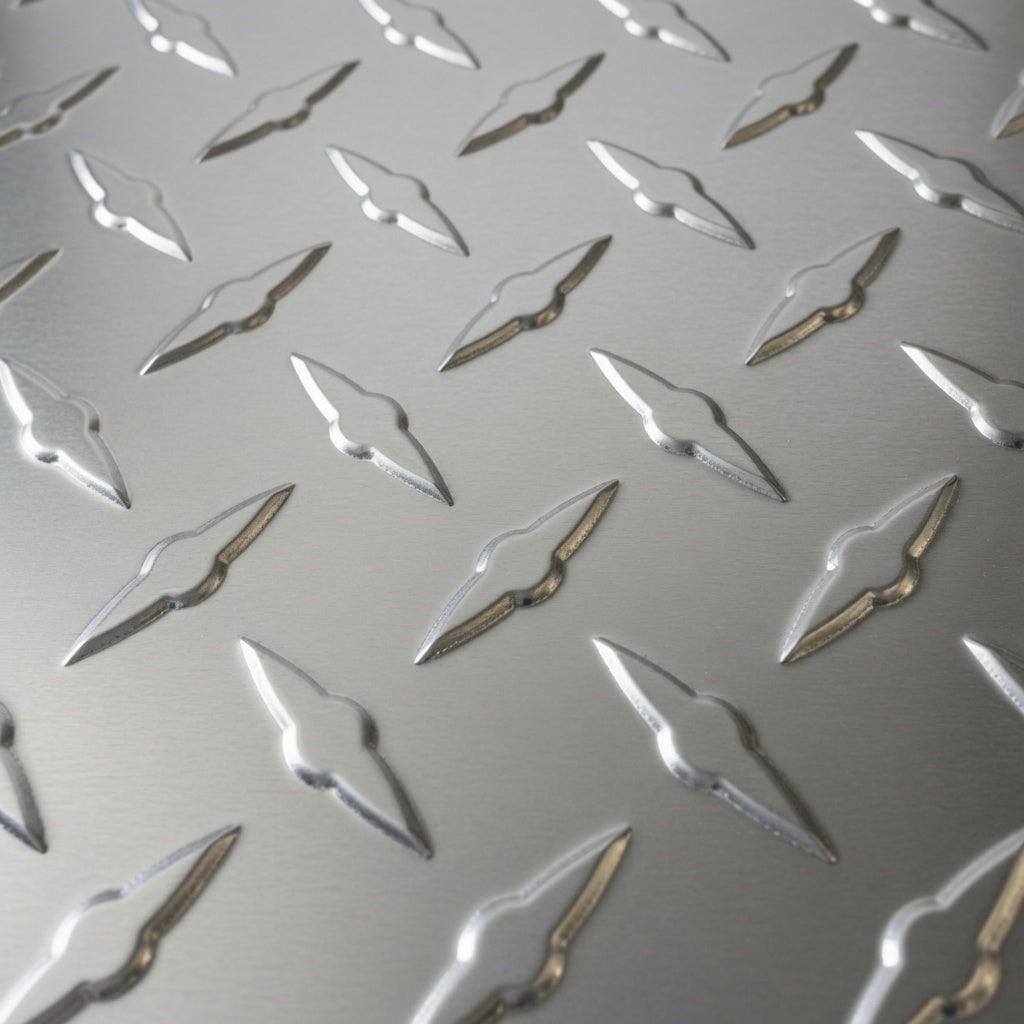

What Is Embossed Diamond Plate?

The .025" sheet is manufactured using an embossing process that stamps the diamond tread pattern directly into the aluminum sheet. This produces a lightweight, flexible sheet with the full visual impact of diamond plate — clean diamond pattern on the face, smooth beveled transitions between knobs, and a bright anodized finish that holds up under normal interior conditions. At 11.3 lbs per 4'x8' sheet it is significantly lighter than heavy duty raised-knob material, making it easier to handle, cut, and install on walls, wainscoting runs, and trailer interiors without additional structural support.

This is our single best-selling product — and the sheet most professional installers specify for interior wall panel applications.

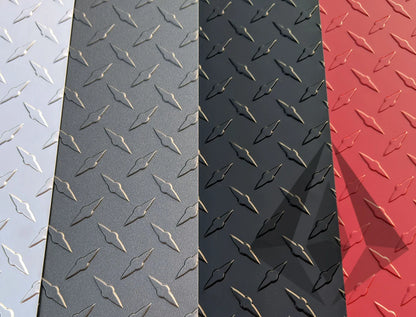

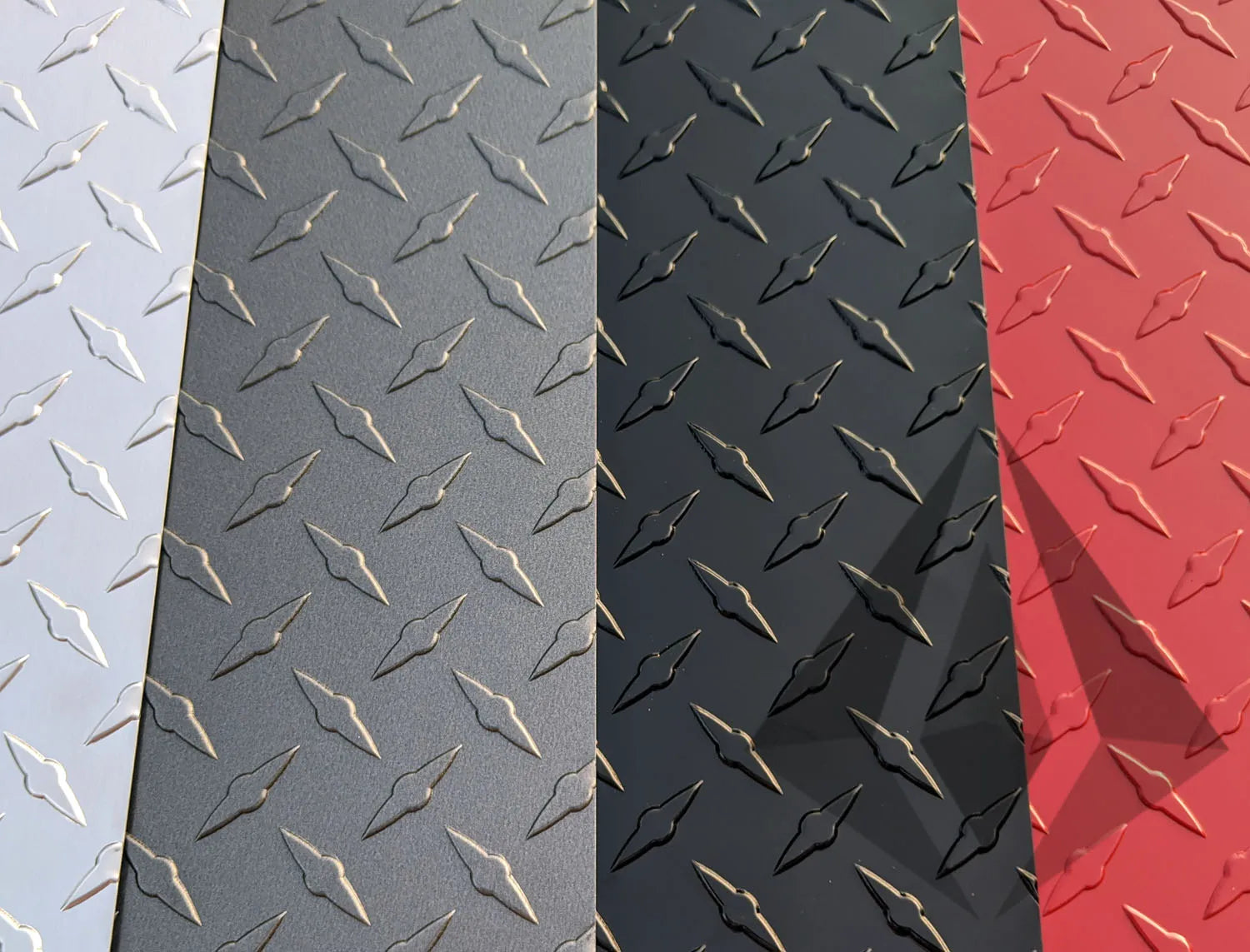

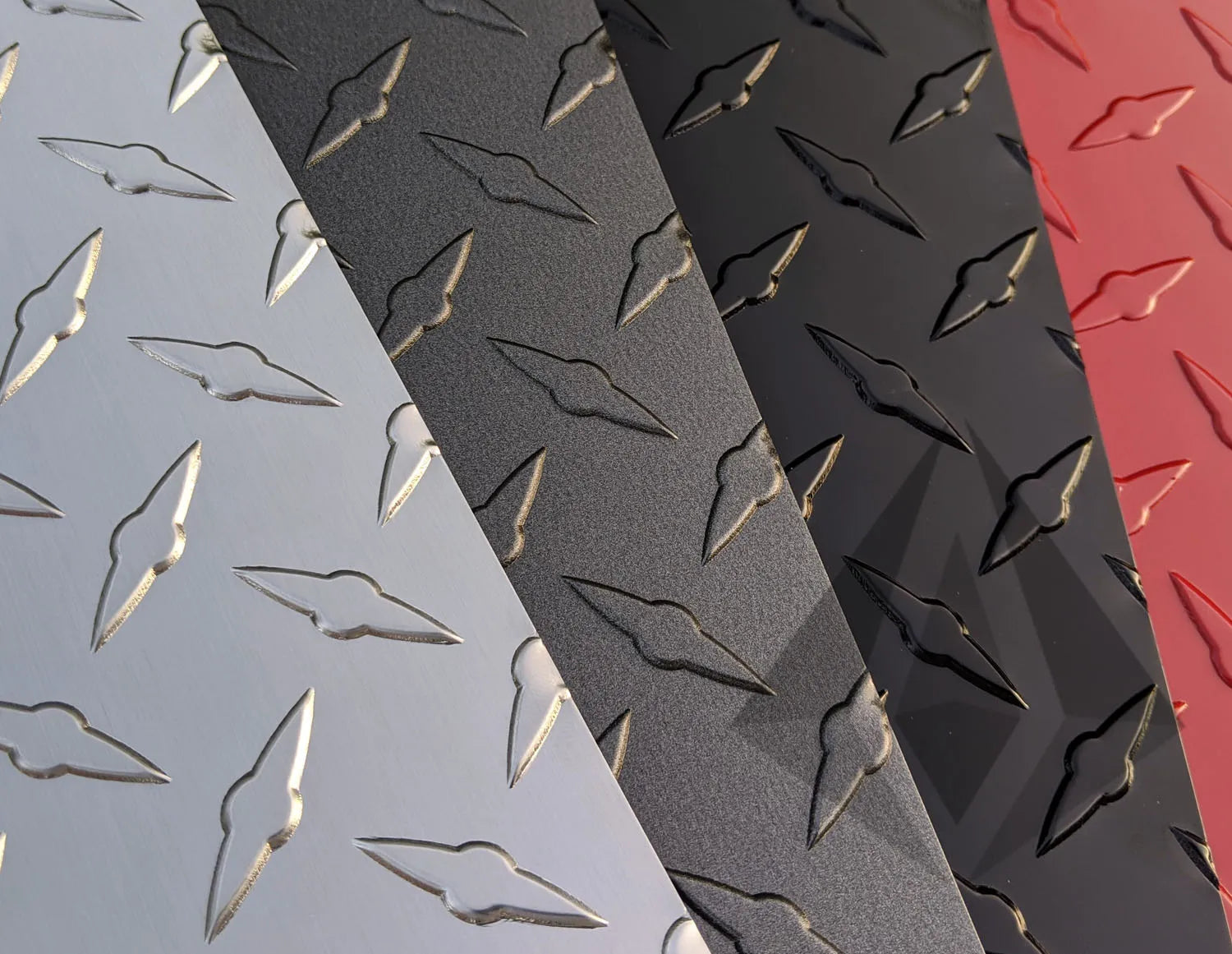

Wholesale Colors — Four Anodized Finishes

All four finishes are anodized directly into the aluminum surface — not painted or powder coated. Anodized finishes will not chip, peel, or fade under normal interior installation conditions. Polished, Gloss Black, and Dark Metallic Gray each correspond directly to matching wholesale aluminum trim profiles in our catalog. Race Red is available in both 2'x8' and 4'x8' sizes and pairs beautifully with Polished trim for a high-contrast finished edge — contact us for trim recommendations specific to your Race Red installation.

• Polished (High Polish Silver) — Mirror-like anodized finish. The classic diamond plate look. Available in 2'x8' and 4'x8'. Matches Polished aluminum trim profiles.

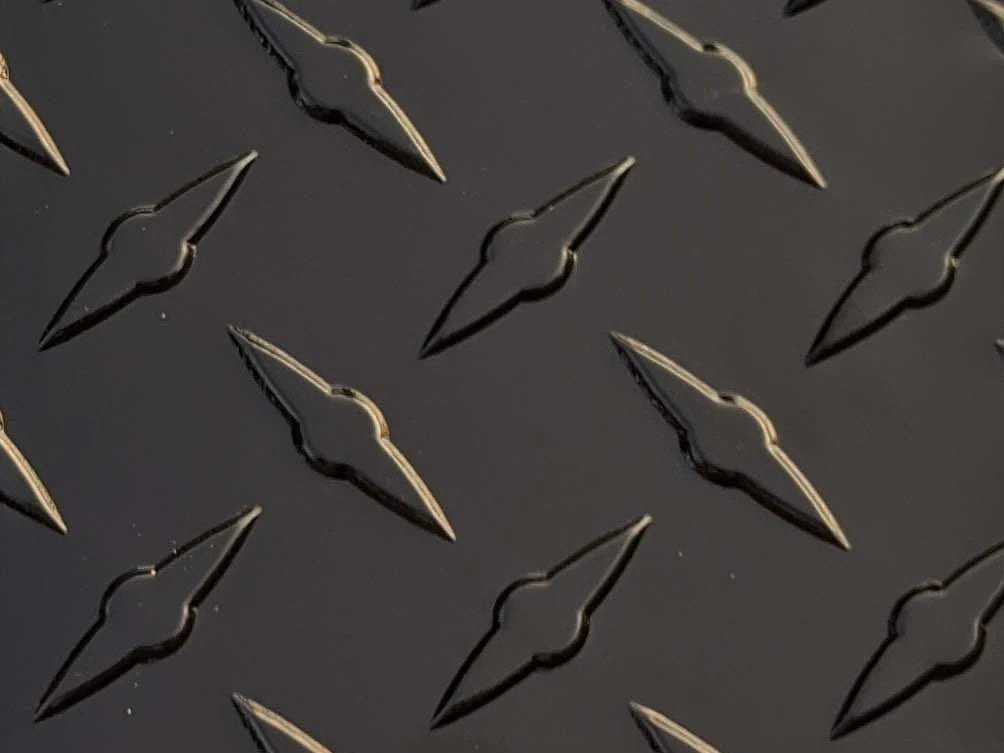

• Gloss Black — Dark, high-gloss anodized finish for a modern, clean aesthetic. Available in 2'x8' and 4'x8'. Matches Gloss Black aluminum trim profiles.

• Dark Metallic Gray — Low-sheen industrial finish for a more subdued, utilitarian look. Available in 2'x8' and 4'x8'. Matches Dark Metallic Gray aluminum trim profiles.

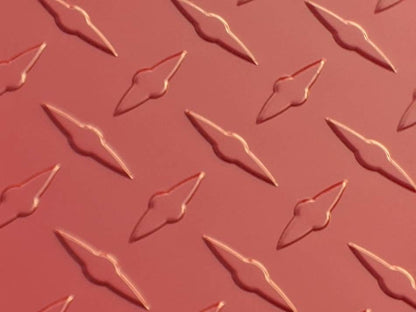

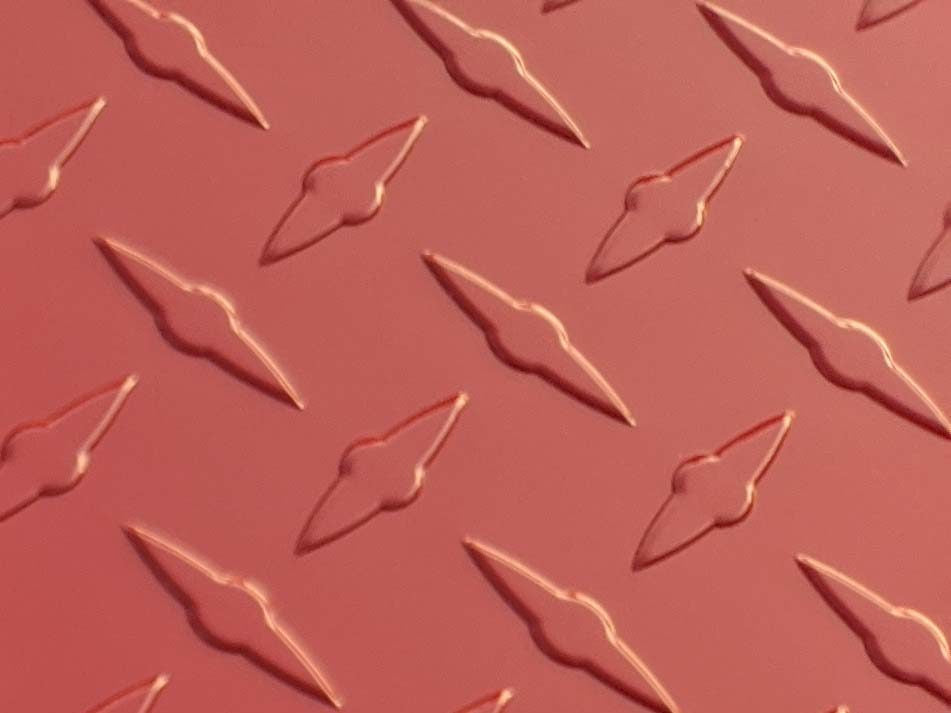

• Race Red — Bold, vibrant red anodized finish for high-visibility applications, custom builds, accent walls, motorsport shops, and anywhere a striking color statement is the goal. Available in 2'x8' and 4'x8'. Pairs with Polished trim for a clean contrast edge finish.

Not sure which finish is right for your project? Order a trim and sheet sample pack before placing a wholesale order.

Available Sizes and Pricing

• 2' x 8' — $74.38 per sheet | Approx. 5.7 lbs | Available in all four colors | 20-sheet minimum per variant

• 4' x 8' — $133.67 per sheet | 11.3 lbs | Available in all four colors | 20-sheet minimum per variant

Colors and sizes can be mixed across a single wholesale order. However, the 20-piece minimum applies per individual variant — each specific size and color combination must be ordered in quantities of 20 or more. For example, 20 Polished 4'x8' sheets plus 20 Race Red 4'x8' sheets is a valid order. 10 Polished and 10 Race Red does not meet the per-variant minimum.

Embossed vs. Heavy Duty — Choosing the Right Sheet

The .025" embossed sheet is the correct choice for the vast majority of wall, wainscoting, and decorative diamond plate applications. Here is a straight comparison to help you specify the right product:

	.025" Embossed (This Product)	Heavy Duty Raised Knob (.045"–.125")
Construction	Diamond pattern stamped into sheet — pattern visible front and back	Genuine raised knobs formed into aluminum — flat smooth back
Weight (4'x8')	11.3 lbs	20.6 lbs (.045") to 60.8 lbs (.125")
Best For	Walls, wainscoting, trailers, decorative and accent applications	Structural applications, stairs, floors, heavy impact
Color Options	Polished, Gloss Black, Dark Metallic Gray, Race Red	Polished only
Trim Compatible	✅ Yes — all OnlineDiamondPlate.com trim profiles	✅ Up to .063" — custom seam covers for .125"
On-Site Cutting	Electric hand shear or tin snips	Grinder or metal cutting wheel (.063" and .125")
Wholesale Available	✅ Yes — this product	See heavy duty wholesale options

Cutting and Fabrication

The .025" embossed sheet is the easiest gauge of diamond plate to cut and work with on site. No grinder or metal cutting wheel required.

• On-site cutting: Use the OnlineDiamondPlate.com swivel-head electric hand shear for fast, clean cuts with no blade changes. Standard tin snips also work for shorter cuts.

• Custom cuts (pre-ship): Available at an additional charge using our industrial 10-foot shear. Straight 90-degree cuts only — no notched cuts, angled cuts, radius cuts, or cutouts. Maximum sheet length 8 feet. Custom cut sheets are non-returnable. Contact us before ordering if you have questions about whether your cut can be accommodated.

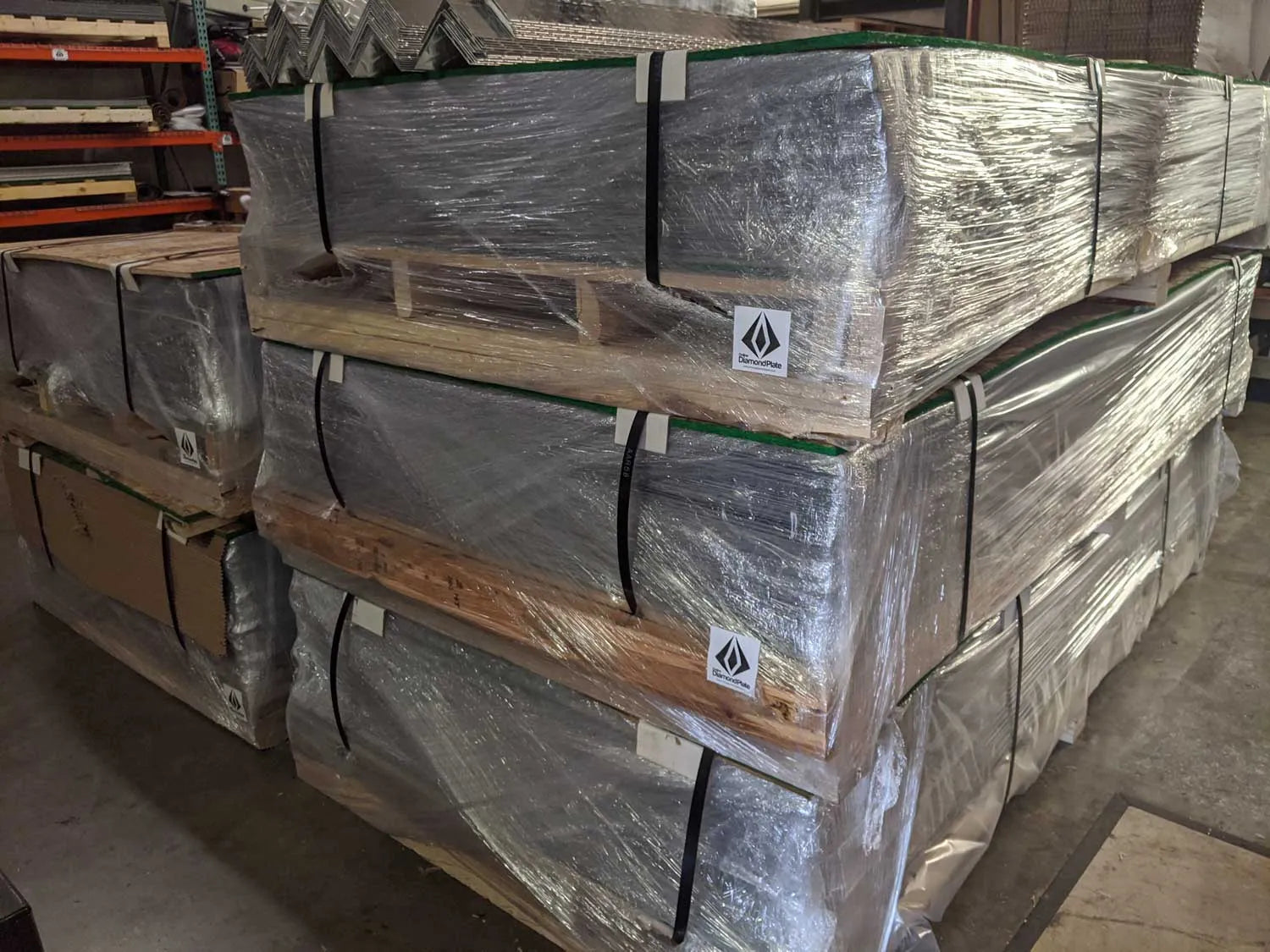

Pallet Configuration

• Pallet dimensions: 100"L x 50"W x 14"+ height

• Maximum sheets per pallet: 100 sheets to prevent damage during transit

• Mixed colors per pallet: Yes — all four colors and both sizes can ship together on a single pallet

• Protective film: PVC peel-off film included on all sheets in all colors — leave on during transit and installation

Shipping — Important: Read Before Ordering

All wholesale embossed sheet orders ship flat on custom pallets via LTL ground freight common carrier. We route each shipment through the most cost-effective carrier at time of order — typically Old Dominion, FedEx Freight, TForce Freight, or ABF Freight. Pallet dimensions (100"L x 50"W) exceed the length limit for liftgate service on all carriers.

No liftgate delivery is available on any wholesale pallet shipment.

• Loading dock required: Delivery address must have a loading dock, OR

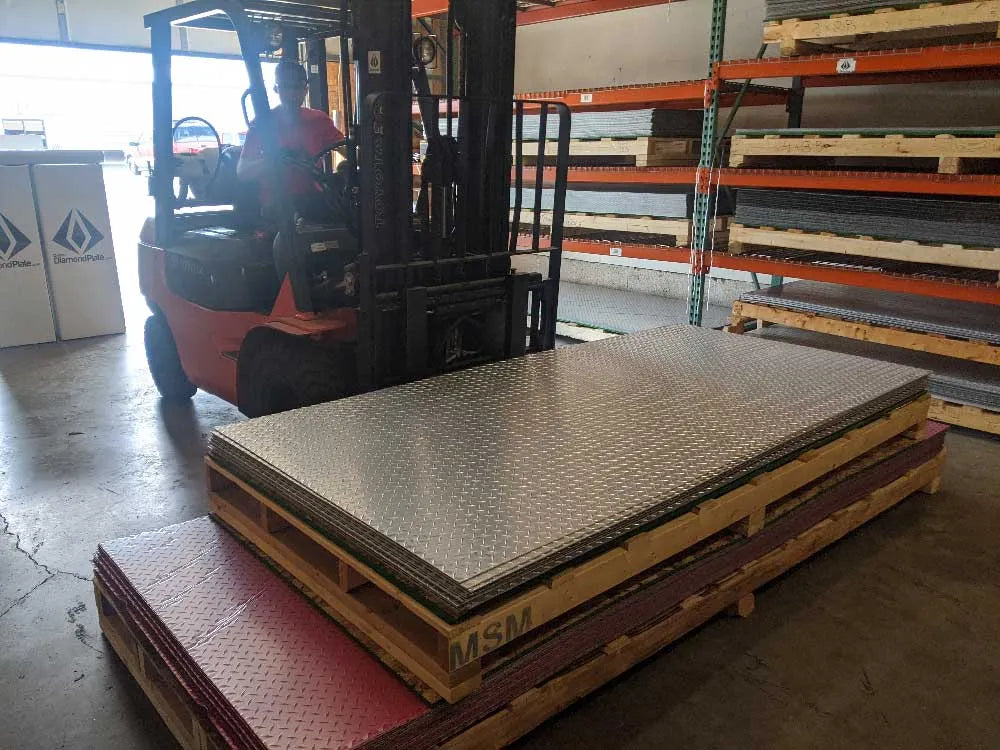

• Forklift on site: A forklift must be available to unload from the freight truck

• No dock or forklift? Select carrier terminal pickup at checkout — we will route your order to the nearest freight terminal for pickup at your convenience

Contact us before ordering if you have questions about delivery requirements for your location.

Sheet Specifications

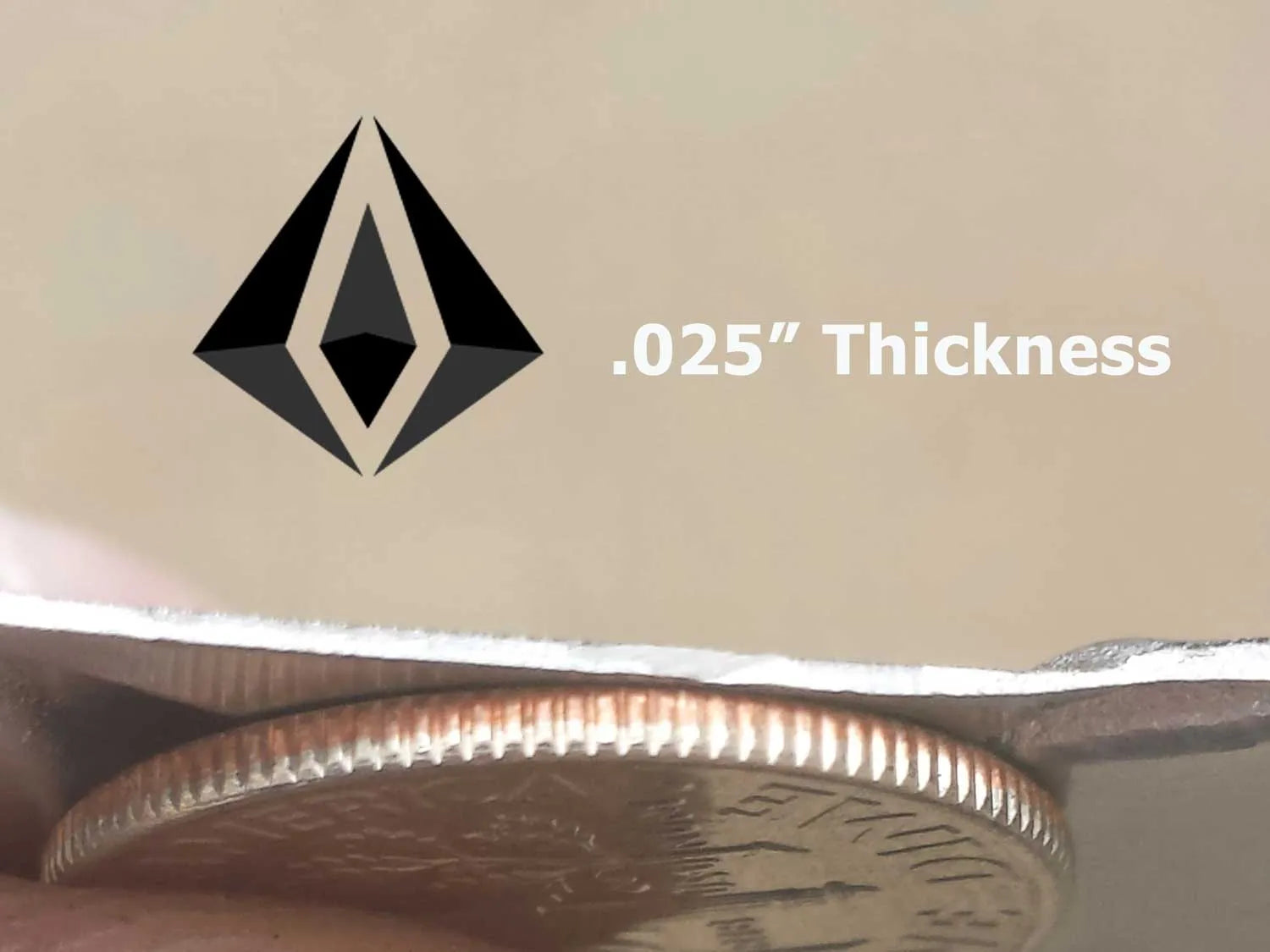

Thickness	.025"
Construction	Embossed diamond tread pattern
Finish Options	Polished | Gloss Black | Dark Metallic Gray | Race Red
Stock Sizes	2' x 8' and 4' x 8'
Weight — 4'x8'	11.3 lbs
Weight — 2'x8'	Approx. 5.7 lbs
Corrosion Resistance	Excellent — aluminum will not rust
Protective Film	PVC peel-off film included on all sheets in all colors
Custom Cuts	Available — straight 90-degree cuts only, no notched cuts
Minimum Order	20 sheets per variant
Availability	Wholesale accounts only

Complete Your Wholesale Order

Pair your wholesale sheet order with our full range of wholesale aluminum trim profiles. Polished, Gloss Black, and Dark Metallic Gray sheets have directly matching trim profiles in our wholesale catalog. Race Red sheets pair with Polished trim for a clean, high-contrast edge — contact us for trim recommendations specific to your Race Red installation:

• Wholesale H-Seam Splice Molding — For joining panels at vertical and horizontal seams

• Wholesale Inside Corner Trim — For finishing panels at 90-degree inside corners

• Wholesale Outside Corner Trim — For finishing panels at 90-degree outside corners

• Wholesale J-Trim Edge Cap — For terminating panel edges at walls, ceilings, floors, and door frames

• Diamond Plate Screws — DeWalt Wall-Dog anchors compatible with .025" embossed sheets in all colors — no pre-drill required

• 3M 550 Construction Adhesive — For a completely fastener-free panel installation in any color

About OnlineDiamondPlate.com

OnlineDiamondPlate.com is a proud American company located in Golden, Colorado. All products ship from our Golden facility. Learn more about who we are.

Wholesale pricing. Four colors. Fast flat-pallet shipping. Everything you need to complete the job.
