Diamond Plate Screws – Works in Drywall, Wood & Metal Studs | 100-Pack

The Right Fastener Makes or Breaks Your Diamond Plate Installation

There are two ways to install diamond plate wall panels: screws or construction adhesive. Both work. They are not interchangeable. Choosing the wrong method for your project creates headaches that are expensive and time-consuming to fix. Here's exactly how to choose.

Screws vs. Adhesive — Choose Your Method First

	✅ Diamond Plate Screws (This Product)	3M 500 Construction Adhesive
Install Speed	Fast — drive and done	Moderate — requires positioning time
Panel Removal	Easy — unscrew and done	Very difficult — panels bond permanently
Finish Appearance	Visible screw heads (polished or black)	Completely clean — no visible fasteners
Cost	Less expensive	Higher cost per project
Works Without Studs	Yes — anchors directly into drywall	Yes — bonds to any clean wall surface

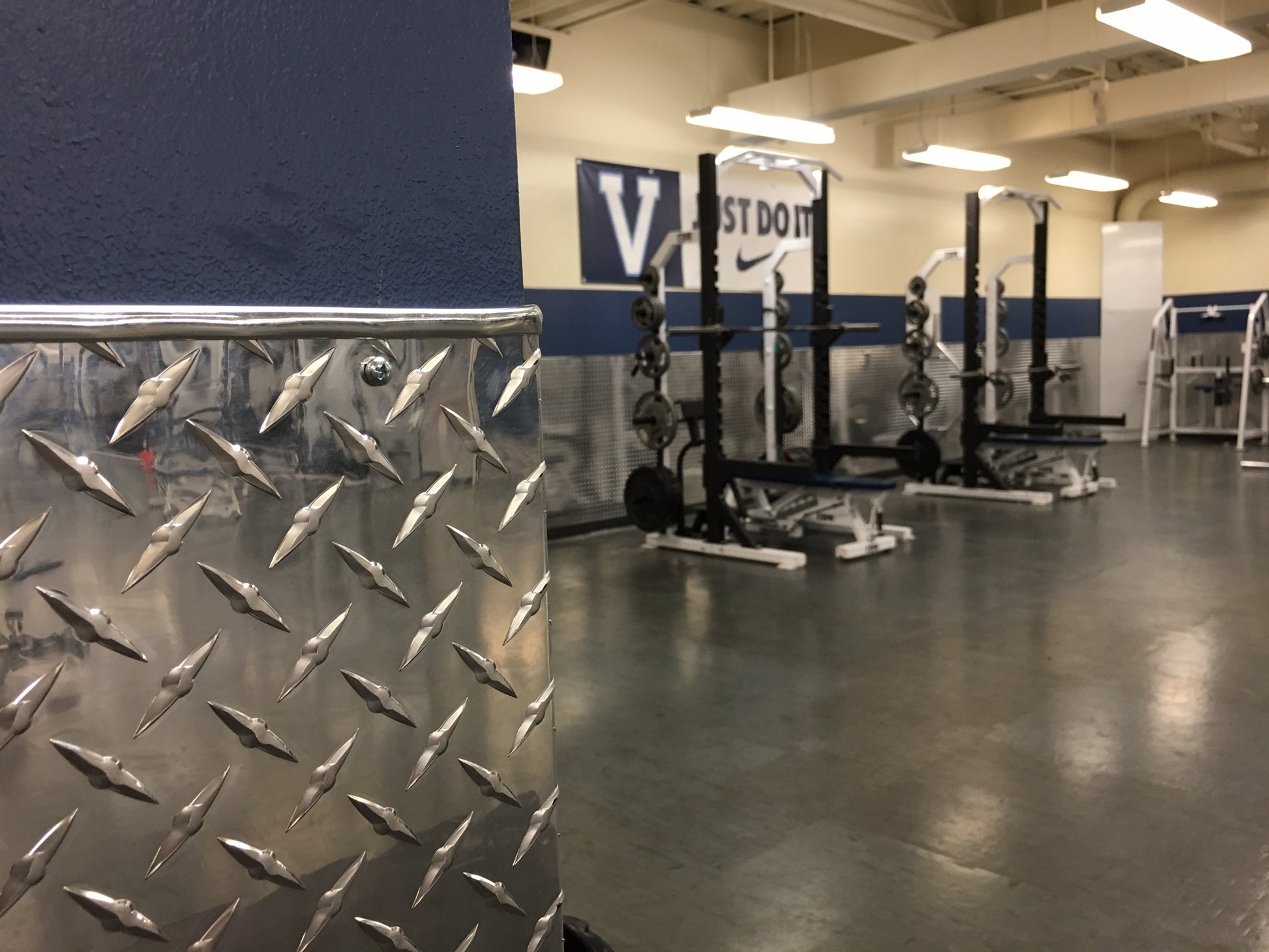

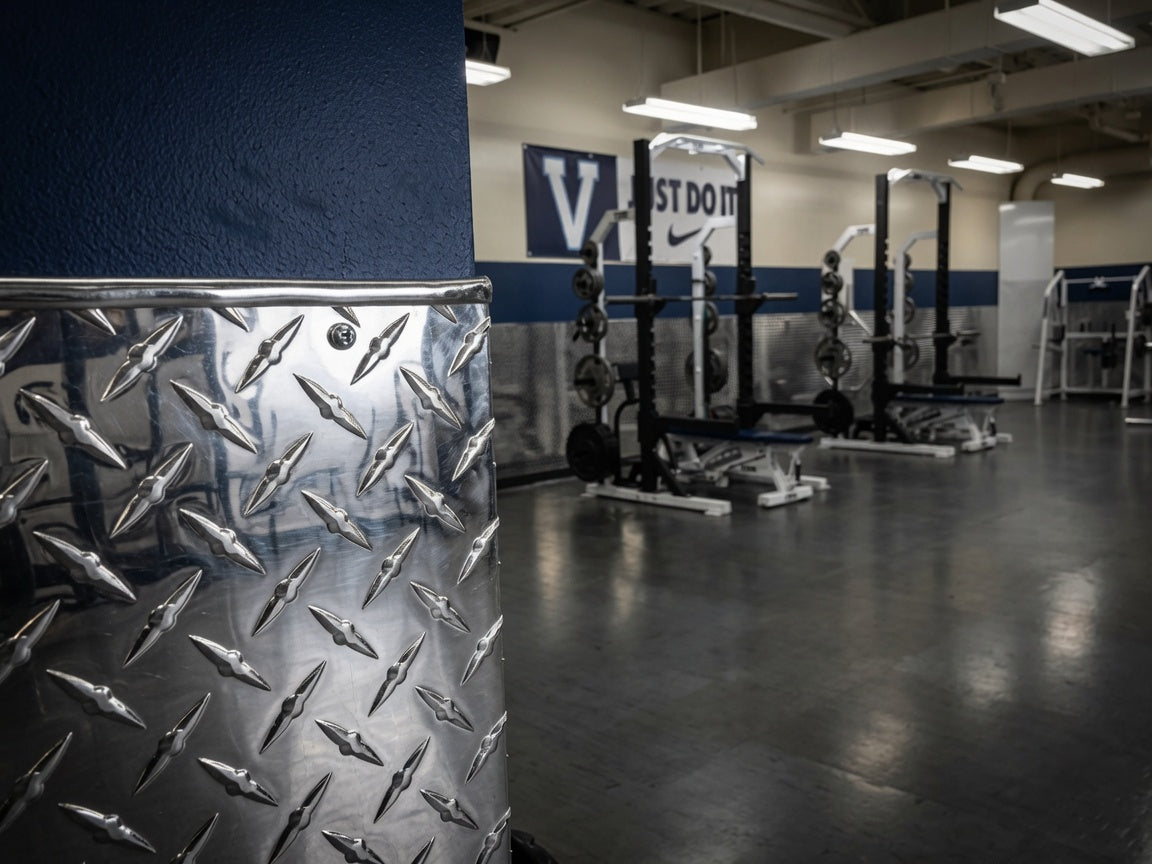

Best For	Garages, shops, commercial spaces, anywhere panels may need replacing	Showrooms, restaurants, retail — anywhere a seamless look is the priority

Bottom line: Choose screws when budget, speed, and future panel access matter. Choose 3M 550 Construction Adhesive when a flawless, fastener-free finish is the top priority and you never plan to remove the panels.

---

Why These Screws — Not Just Any Screw

The most common installation mistake is reaching for a self-tapping screw. It sounds logical — it's metal, it drives fast, and it bites into studs beautifully. The problem is that self-tapping screws have zero holding power in drywall. Miss a stud and that corner of your panel is anchored by nothing. Over time it loosens, rattles, and pulls away from the wall.

The DeWalt Wall-Dog (02316-PWR) is purpose-built to eliminate this problem. It is the only fastener that performs as a drywall anchor and a stud screw in the same drive — no second step, no separate anchor, no relocating your screw because the stud isn't where you need it.

• Hit a wood stud? The heat-treated hardened point drives directly into wood framing. Full thread engagement, maximum pull-out strength.
• Hit a metal stud? Same hardened point cuts cleanly through light-gauge steel. No pre-drilling required.
• No stud behind your panel? The Wall-Dog becomes its own drywall anchor. Wide, aggressive, corkscrew-like threads lock into wallboard with far superior holding power compared to self-tapping screws or plastic sleeve anchors.

Compatible substrates: drywall, wood studs, metal studs, plywood, plaster, concrete masonry, and brick.

---

Compatible With All OnlineDiamondPlate.com Panel Thicknesses

These screws are matched to the full range of diamond plate aluminum panels sold on this site — from lightweight .025" sheet through heavy .125" plate.

Pre-Drill Guide by Panel Thickness

Panel Thickness	Pre-Drill Through Panel?
.025" aluminum	❌ No — drive directly through panel
.032" aluminum	❌ No — drive directly through panel
.045" aluminum	✅ Yes — pre-drill panel face only
.063" aluminum	✅ Yes — pre-drill panel face only
.125" aluminum	✅ Yes — pre-drill panel face only

Pre-drill through the panel face only on thicker gauges. The Wall-Dog still drives into drywall or studs without a pilot hole.

---

The #1 Installation Mistake: Over-Tightening

Diamond plate aluminum panels will oil-can — meaning the panel surface permanently buckles and warps between screw points — if fasteners are driven too tight. Oil-canning ruins the appearance of an otherwise perfect installation and cannot be fixed without replacing the panel.

Drive each screw until the pan head sits flush with the panel surface. Stop immediately. Do not countersink. Do not keep driving past flush. Use a drill/driver with an adjustable clutch — not an impact driver — for maximum control. Set the clutch conservatively and test on scrap material before committing to your panel run.

---

How Many Screws Do You Need?

Panel Size	Recommended Screw Count
2' x 8' sheet	10–12 screws
3.5' or 4' x 8' sheet	15–18 screws
4' x 10' sheet	18–21 screws

A single 100-pack covers approximately 5 to 6 full sheets of standard 4' x 8' diamond plate — enough for a complete garage wall run or full mudroom wainscoting project in one order.

Installation pattern: Fasten the perimeter first at 8"–12" intervals, then place field screws to eliminate panel flex between edges. Keep spacing consistent — irregular screw patterns are visible on reflective diamond plate surfaces.

---

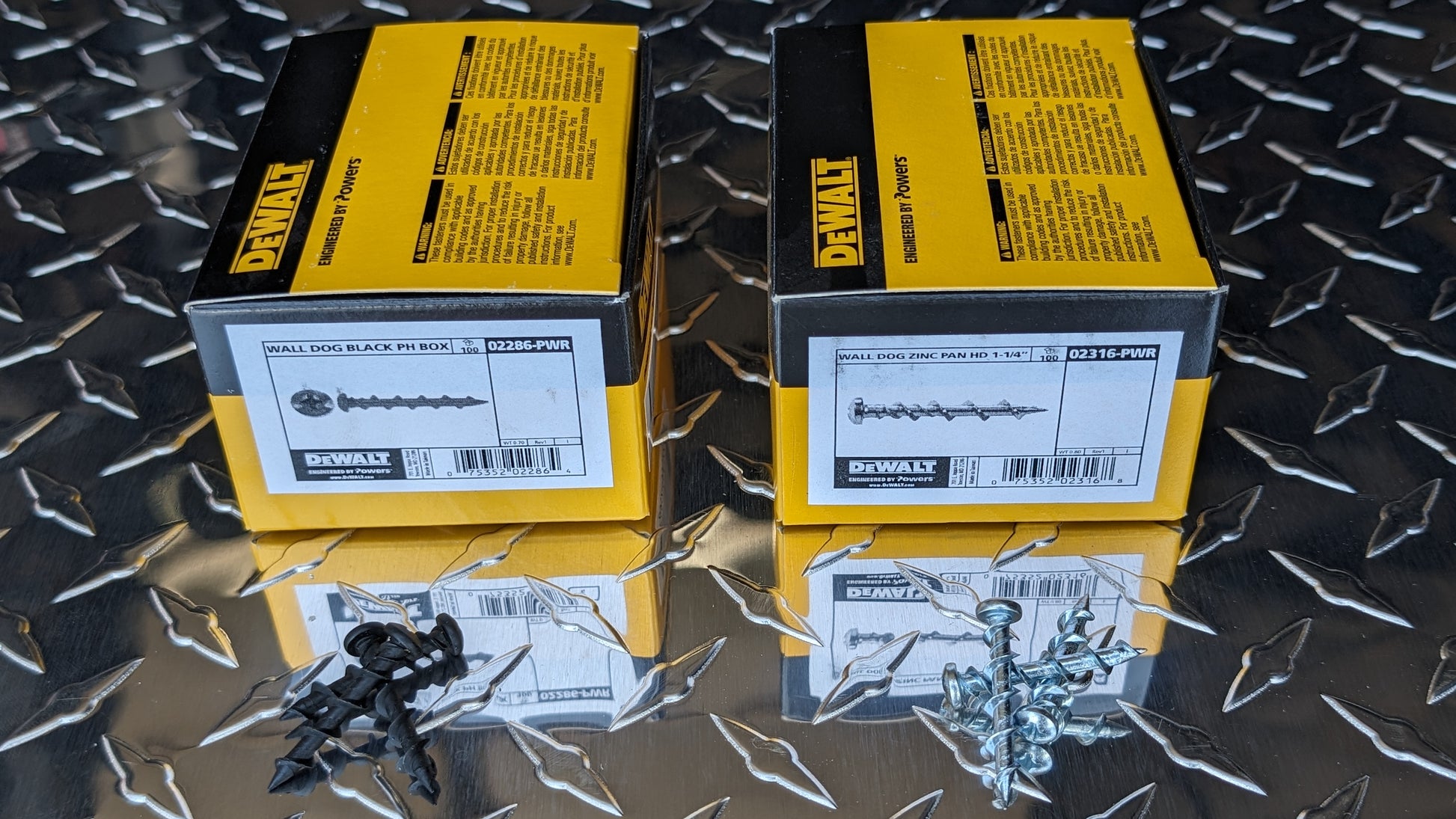

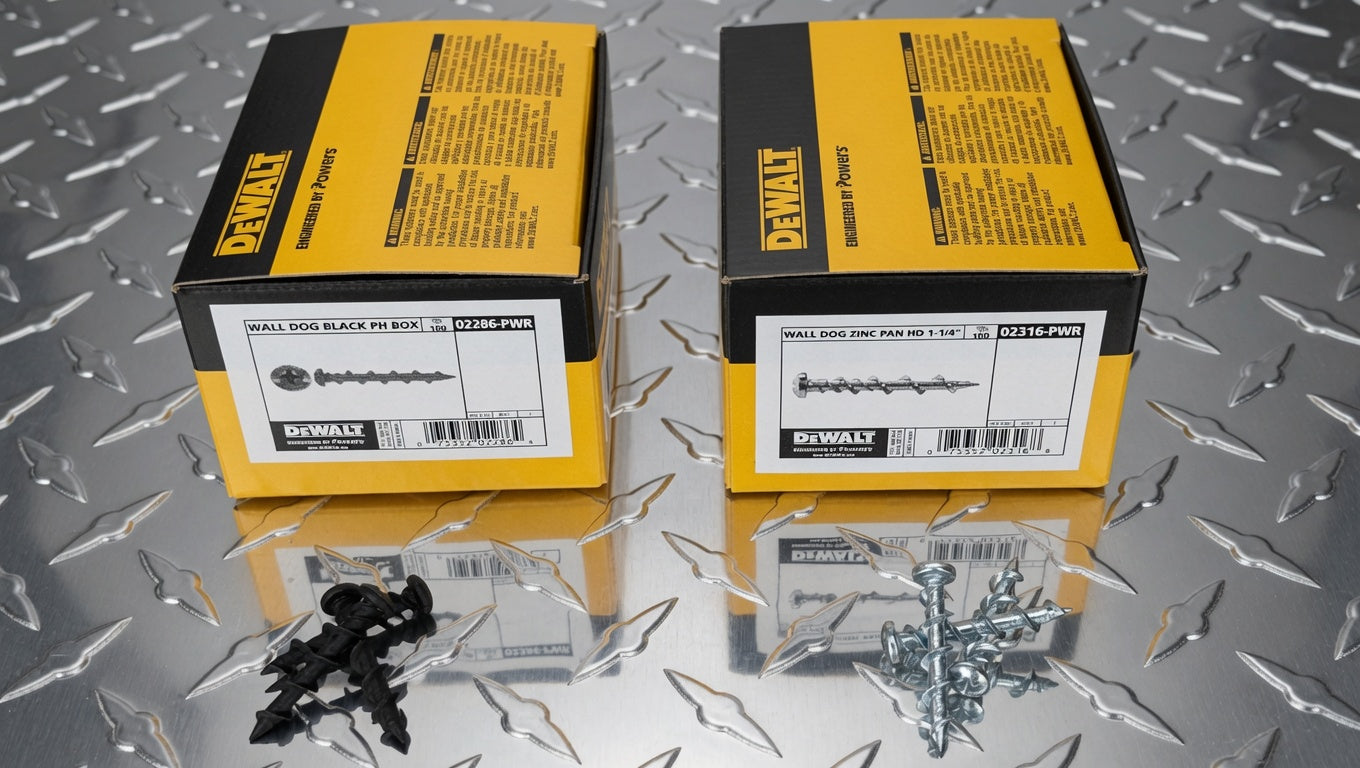

Two Finishes — Match Your Panel

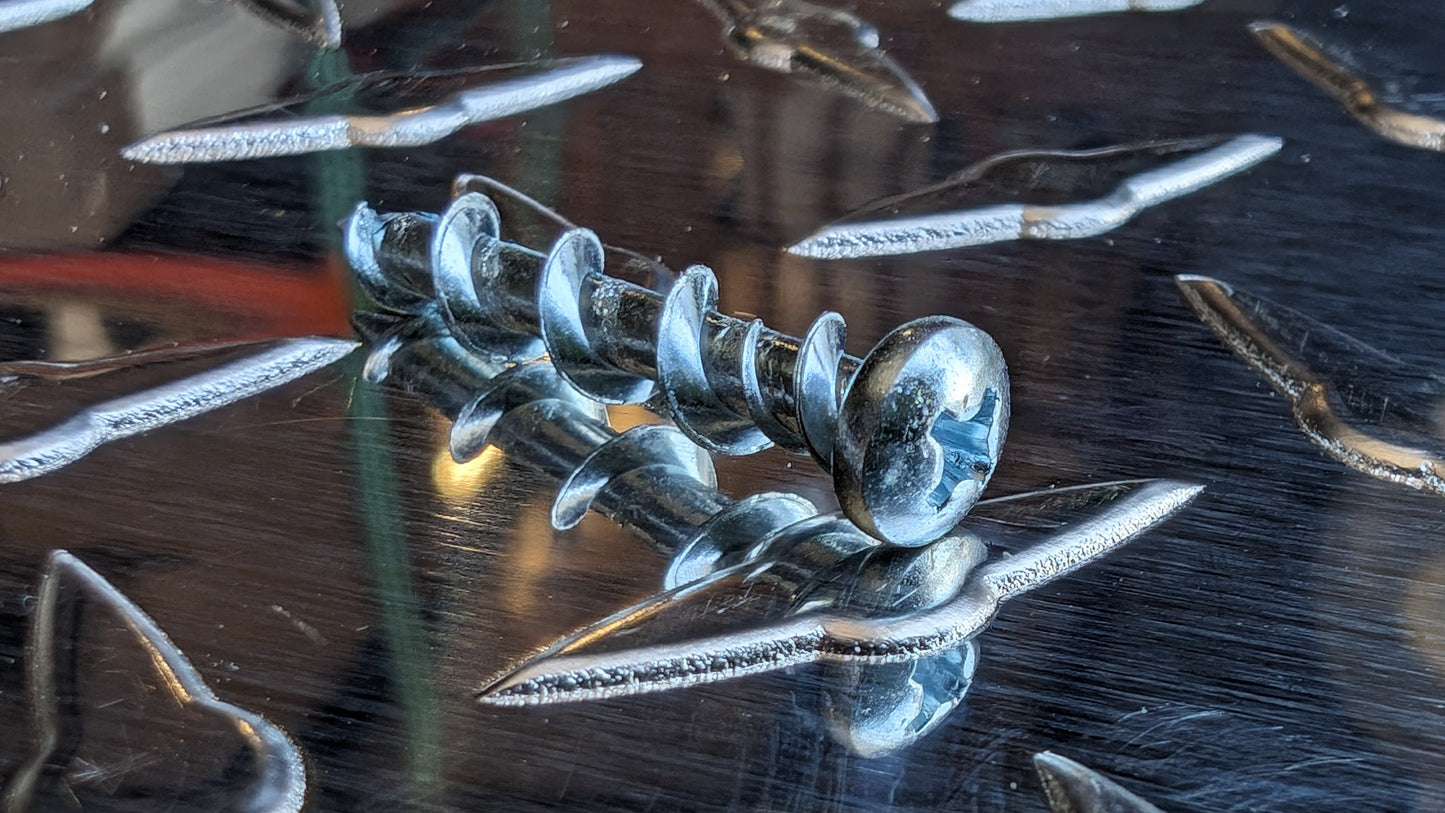

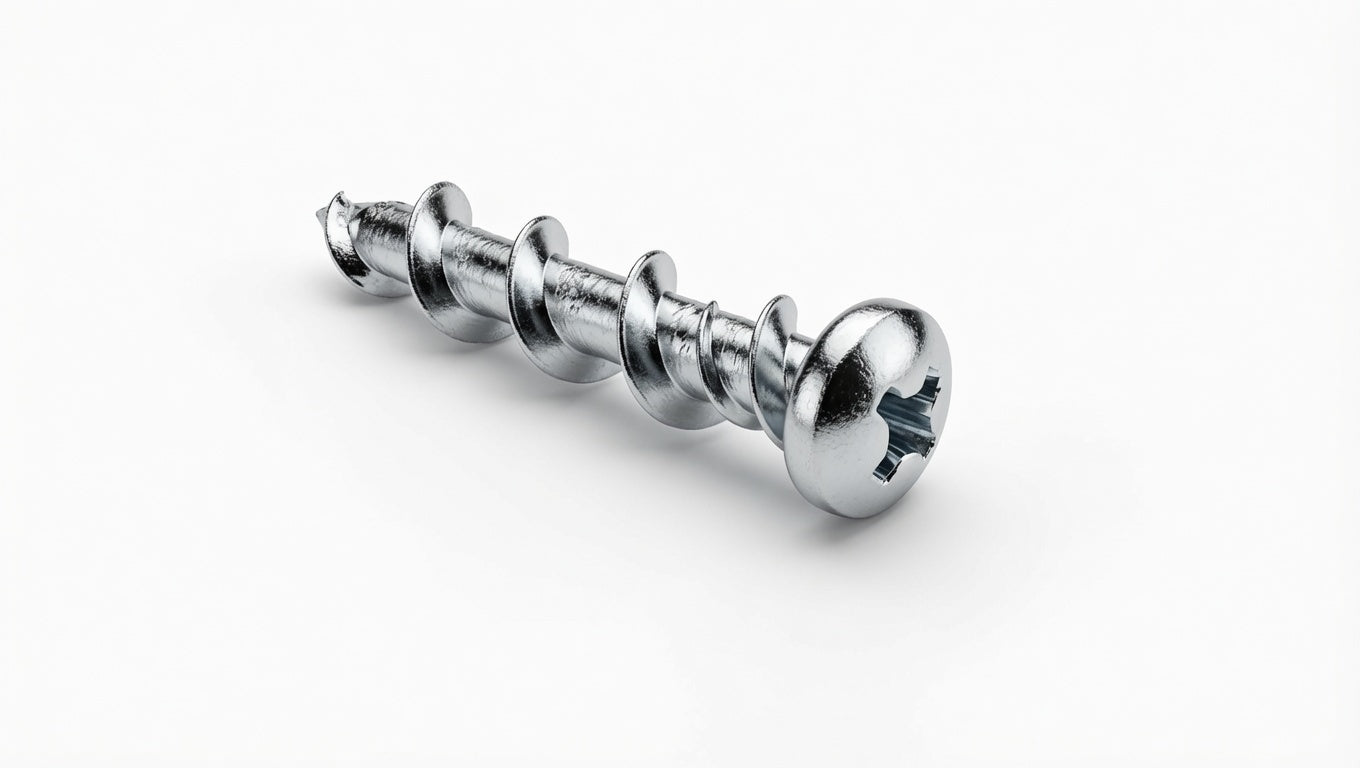

Polished (Zinc/Chrome)
Bright, clean finish that virtually disappears against natural aluminum diamond plate. The standard choice for traditional silver panel installations in garages, shops, and utility spaces.

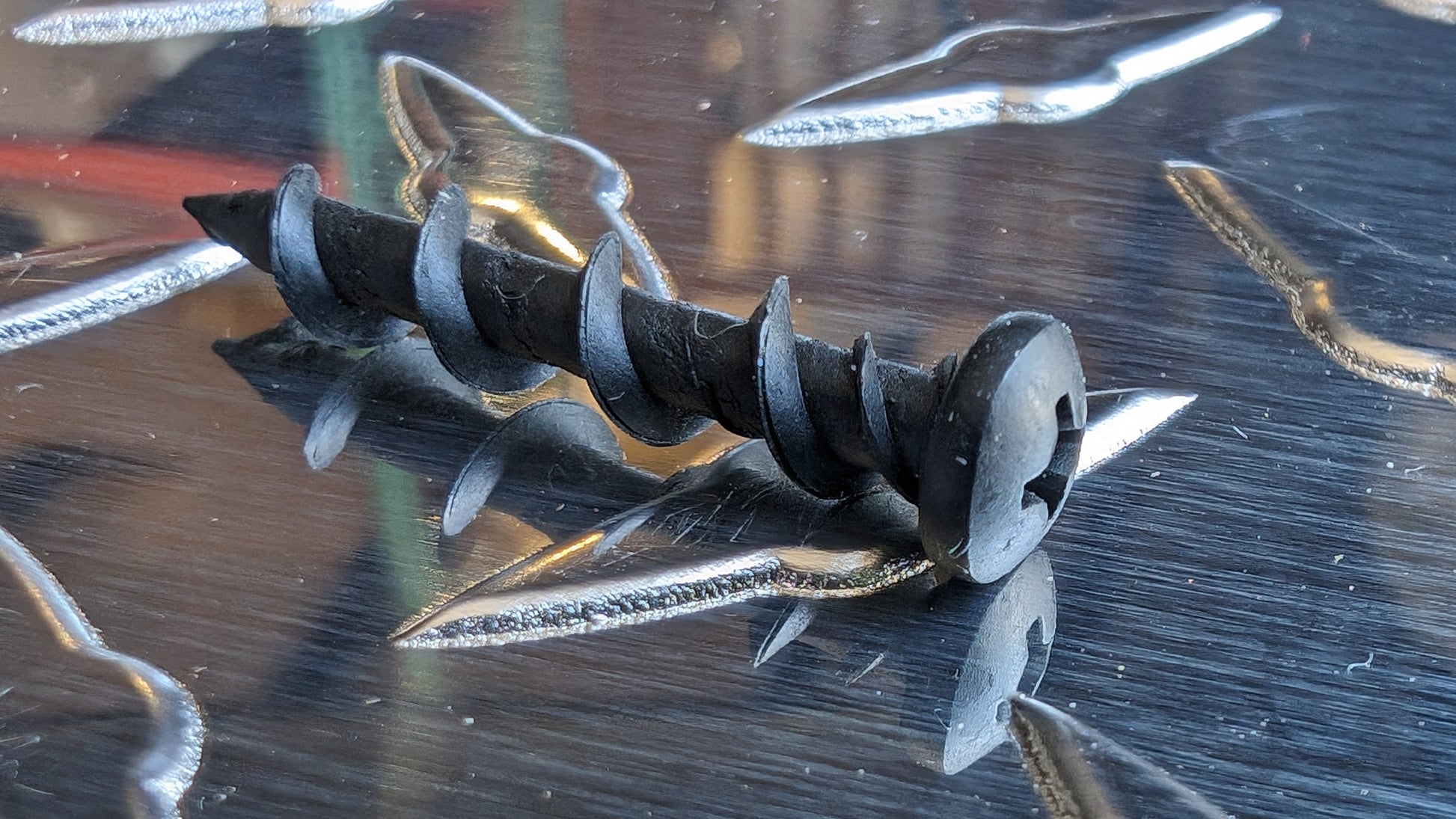

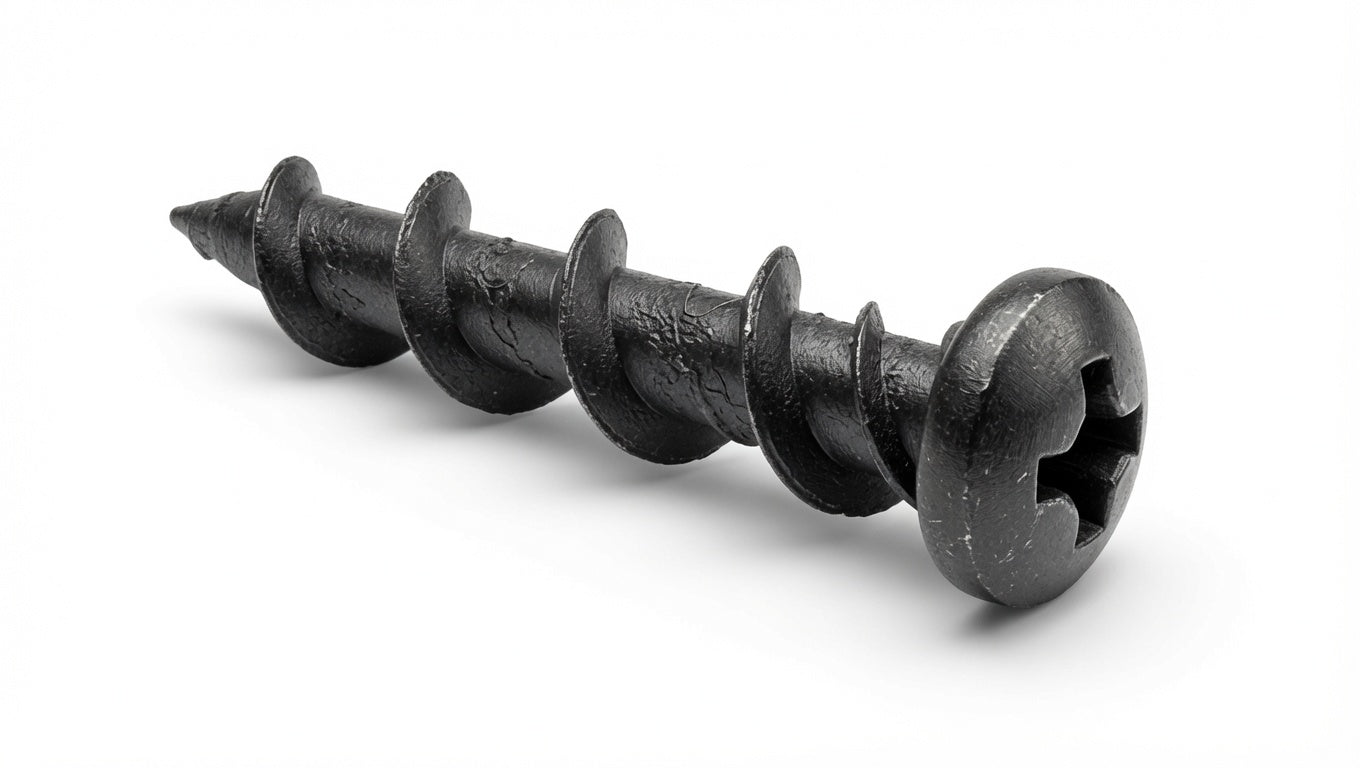

Black
Coated finish for black diamond plate panels or any application where a dark fastener head is preferred. Delivers a sharp, intentional look rather than a silver dot against a dark panel surface.

Both finishes are identical in steel, thread geometry, and holding strength. Finish difference is cosmetic only.

---

Specifications

Manufacturer	DeWalt (engineered by Powers Fasteners)
Part Number	02316-PWR
Diameter	1/4"
Length	1-1/4"
Head Style	Pan Head
Drive Type	#2 Phillips
Material	Carbon Steel
Finish Options	Zinc/Chrome (Polished) or Black Coated
Compatible Panel Thickness	.025" – .125" aluminum diamond plate
Suitable Substrates	Drywall, Wood Studs, Metal Studs, Plywood, Plaster, Masonry
Quantity	100 screws per pack

---

Frequently Bought Together

Not sure screws are right for your project? Browse our 3M 550 Construction Adhesive for a completely clean, fastener-free installation. Both products ship alongside your diamond plate panel order so you arrive on site with everything you need.

One pack. The right screw. A clean install that stays clean.
