Embossed Aluminum Diamond Plate for Trailers, Rock Guards & Truck Beds (What Thickness & Size to Order)

Trailer, rock-guard, and truck-bed ordering guide — Online Diamond Plate / KC5280

Replacing a hail-chewed rock guard, lining a cargo trailer wall, or covering a truck toolbox? Embossed aluminum diamond plate is usually the right call — as long as you order the right thickness and size. This guide covers .025" embossed vs heavy-duty gauges, common trailer and truck jobs, stock sizes, custom cuts, rolled shipping, finishes, matching trim and corner guards, and the mistakes that waste a weekend.

.025" embossed vs heavy-duty — what to order

Embossed .025" aluminum diamond plate (3104 alloy) is Online Diamond Plate’s wall, trailer, and utility workhorse. It is light, easy to cut with tin snips, ships rolled in a box to your door, and takes anodized finishes well: Traditional Polished, Gloss Black, Gunmetal Gray, and Race Red.

Heavy-duty gauges (.045", .063", .125") are solid / raised-knob construction with a flatter structural feel. They cost more, ship differently (often freight), and are the better answer when you need floor-grade abuse or true structural skin — not every rock guard needs them.

When in doubt for walls, rock guards, and skins: order .025" embossed. Step up only when the sheet will take standing loads or constant impact as a floor.

Trailer jobs that fit embossed plate

Common trailer uses for Online Diamond Plate customers:

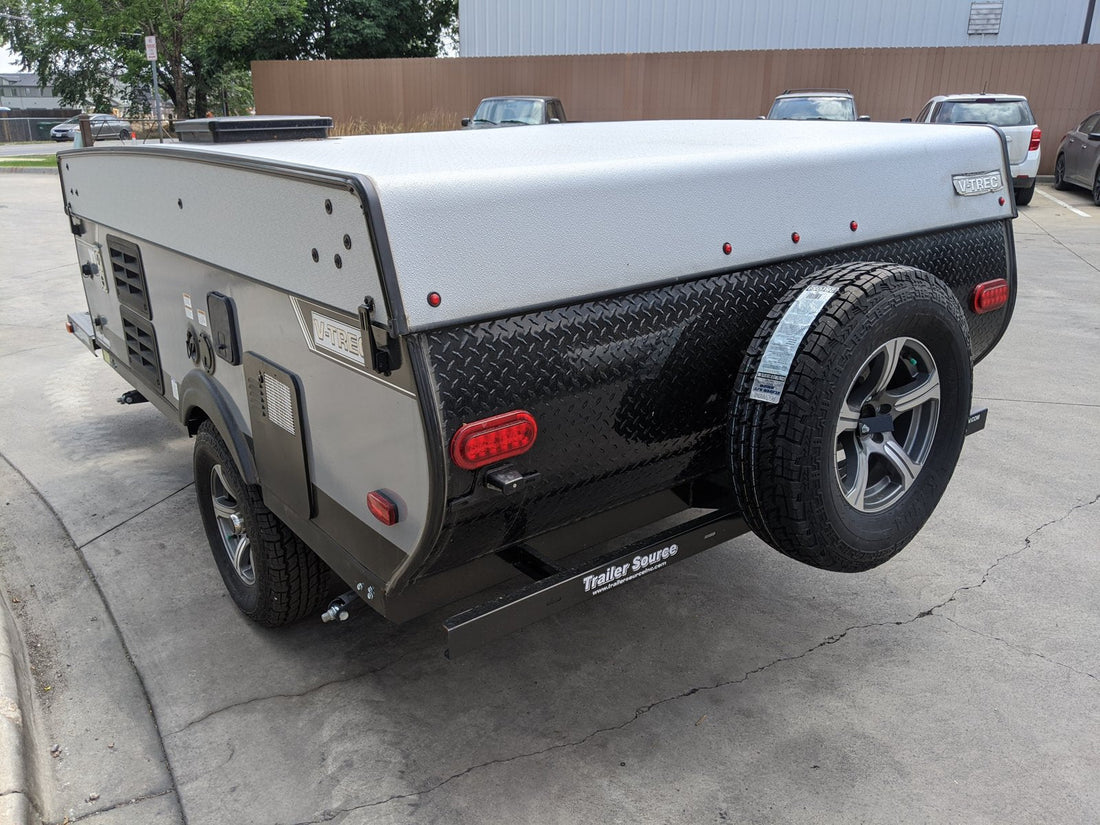

• Front rock guards — replace hail-damaged factory diamond plate; measure height × width and use custom cuts if you want a drop-in panel
• Fender skirts and lower skirts — snip and curl edges for a factory-style undercurl
• Interior walls and gear decks — protect plywood from cargo and tools
• Door surrounds and threshold accents — pair with outside corners / corner guards
• Food truck exterior rear walls and interior backsplashes — durable, wipe-clean signature look

Embossed sheets arrive with a light-tac PVC film. Leave it on through cutting and fitting; peel after install to protect the finish.

Truck beds, toolboxes, and utility beds

For truck projects, .025" embossed shines as a cover and accent, not as a substitute for a spray-in bedliner under constant gravel impact.

Good fits:

• Toolbox lids and sides
• Utility bed cabinets and doghouse wraps
• Cab-back panels and headache-rack accents
• Tailgate upper accents (with proper edge trim)

Use caution:

• Full bed floors that see heavy stone / pallet traffic — consider heavy-duty or a true liner system
• Walking surfaces that need aggressive slip resistance — embossed .025" is not stair-tread plate

Fasten into structure (not just sheet-metal thinness). Teks-style self-drillers for metal-to-metal, or adhesive + mechanical fasteners on composite boxes. Cap every exposed edge with J-Trim so vibration does not start a peel.

Size chart: 2×8, 4×8, 4×10 + custom cuts

Stock embossed sizes on the product page:

Custom cuts — one price

Custom cuts are $23 per cut — that is what checkout charges.

Tolerance on custom cuts is typically ±.063". Custom-cut items are final sale per the shipping & returns policy.

Wholesale: Ordering 20+ sheets? Use the wholesale collection (20-piece increments). Wholesale ships freight, is not free-ship eligible, and needs dock / extended-fork receiving — not a rolled doorstep box.

Rolled shipping — what to expect

All embossed .025" sheets ship rolled and boxed via UPS or FedEx Ground in most cases. That is how a 4'×10' sheet reaches a driveway without a freight appointment.

On arrival:

1. Inspect the box before the driver leaves; note crush damage on the receipt.
2. Open the same day; keep packaging until you confirm the sheet.
3. Unroll on a clean flat surface. Let the sheet relax; a short weight on the corners helps it flatten before install.
4. Keep the PVC film on until you are done cutting and fastening.

Free ground shipping on qualifying orders (contiguous US) applies to embossed .025" sheets when the order meets the site threshold (commonly $600+). Heavy gauges, wholesale, and overlength moldings follow different rules — see the shipping policy.

Finishes for trailers and trucks

• Traditional Polished — classic OEM trailer look; shows wash swirls more; easy to brighten
• Gloss Black — modern truck / toolbox look; hides road film better than polished in some lighting
• Gunmetal Gray — lower sheen, industrial; popular on enclosed trailers
• Race Red — high-visibility accents and custom builds; plan trim color carefully (standard aluminum trim lineup is Polished / Gloss Black / Gunmetal)

Match finish across sheets in one visual plane. Mixing polished rock guards with gunmetal walls can look intentional — or accidental. Decide on purpose.

Matching trim and corner guards

Trailer and truck edges take abuse. Budget trim with the sheets:

• J-Trim / edge cap — every exposed sheet edge
• Outside corners / corner guards — door openings, nose corners, toolbox corners (Corner Guards collection)
• H-Seam — only where full panels meet mid-wall
• Inside corners — enclosed trailer interiors

Shop profiles in Trims & Moldings. Prefer lengths that stay parcel-friendly (6' and under / ~7'10" where eligible) unless you already plan freight.

Mistakes to avoid

1. Ordering heavy-duty when .025" would do — you pay more and may lose rolled doorstep shipping.
2. Skipping custom cuts, then butchering on the driveway — if the opening is a known rectangle, pay the $23 cut and drop it in.
3. No edge trim on a vibrating trailer — raw edges fatigue and look unfinished fast.
4. Ignoring PVC film — peel too early and you install scratches.
5. Assuming Race Red trim matches automatically — confirm trim color before a full red wrap.
6. Wholesale quantity without a dock — 20+ sheet wholesale pallets are not liftgate-friendly.
7. Using .025" as a truck-bed floor under forklift / pallet abuse — wrong product class.
