How to Cut, Bend, and Fasten Aluminum Diamond Plate (Without Ruining a Sheet)

July 8, 2026

We custom-cut aluminum diamond plate every day in our Colorado shop, so we've made — and fixed — every mistake in this guide. Here's exactly what tools, blades, fasteners, and adhesives actually work for each thickness, and the two or three rules that prevent a scrapped sheet.

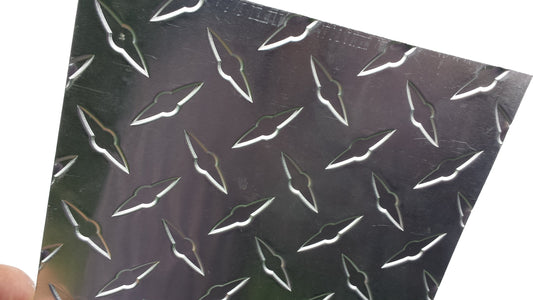

One rule governs everything below: the thickness decides the method. What works perfectly on .025" embossed sheet is useless on .125" solid plate, and vice versa. (Not sure which type you have or need? Start with our embossed vs. solid comparison.)

Cutting: match the tool to the gauge

.025" embossed sheet — shears, snips, or score-and-snap

Thin embossed sheet cuts like heavy-duty flashing:

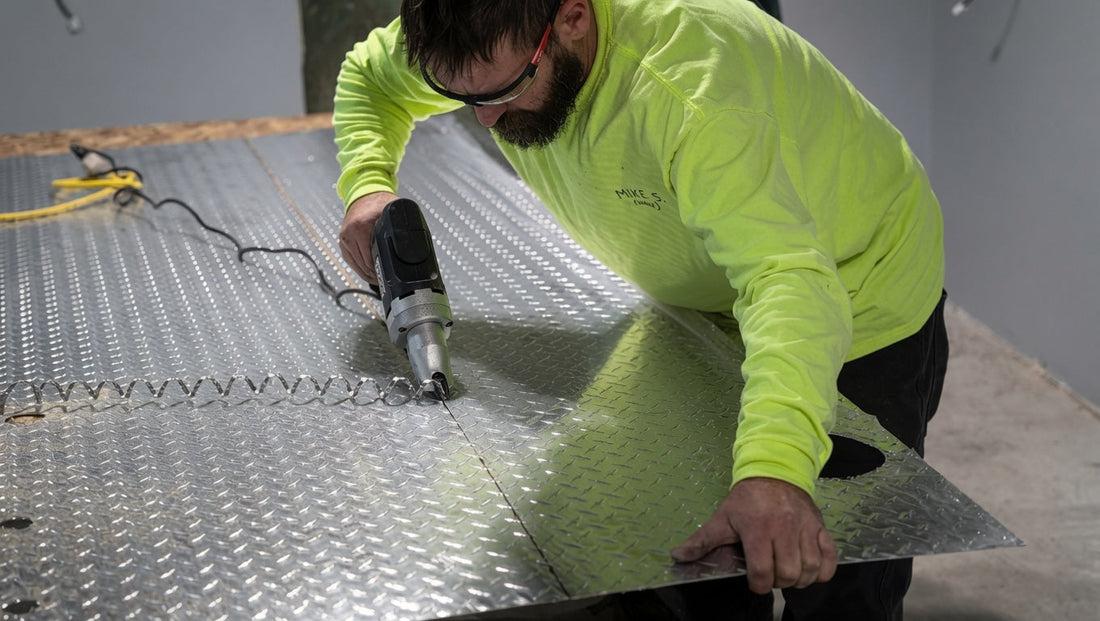

Electric metal shears are the clean, fast answer — a shear like the WEN 3650 in our tools collection glides through .025" aluminum and leaves a straight, burr-light edge with no metal chips. If you're paneling a whole garage, this tool pays for itself on day one.
Aviation/tin snips work fine for notches, outlet cutouts, and short cuts. Use compound-leverage snips and let the waste side curl.
Score-and-snap works for straight rips: clamp a straightedge, score deeply with 6–8 passes of a sharp utility knife, then bend the sheet back and forth at the score line until it snaps clean.

A note on grinders: an angle grinder or cut-off tool with a metal-cutting disc will cut any thickness of diamond plate, but it's the wrong first choice on thin .025" sheet — the abrasive wheel loads up with aluminum, melts along the cut, and leaves a hot, ragged edge. Shears do it cleaner, quieter, and cooler. Save the grinder for the thicker gauges below.

.045" solid plate — shears still win

Quality electric shears and a slow, steady feed still handle .045". Snips will do short cuts, but your hand will feel it. Beyond this gauge, switch to a saw or grinder.

.063" and .125" solid plate — saw or grinder

Circular saw or track saw with a carbide non-ferrous metal-cutting blade — the same blade sold for cutting aluminum extrusions. A track saw gives furniture-grade straight cuts.
A grinder with a metal-cutting disc also works at these gauges and is often the practical on-site choice for short cuts and notches. Expect burrs along the cut — file them down, or plan to cover cut edges with our aluminum trims, which hide a rough edge completely.
Clamp the sheet fully supported on foam board or sacrificial plywood so it can't chatter — vibration, not the blade, is what wrecks aluminum cuts.
For interior cutouts, drill a starter hole first with a large metal bit (a step bit works well), then cut to your line.
Full PPE: aluminum chips off a saw or grinder are hot, sharp confetti. Glasses, sleeves, hearing protection.

Or skip all of it: we custom-cut any sheet for $15 before it ships, on shop equipment, to your dimensions. For one or two precise cuts, that's cheaper than the blade.

Bending: how to avoid the crack

Good news first: standard bright tread plate is a 3003-class alloy in H22 temper — one of the most bendable aluminum products sold. It cracks for only three reasons, all avoidable:

Too tight a radius. Don't bend over a sharp corner. Use a radius of at least the sheet thickness for .025"–.063" (a 1/8"–1/4" rounded edge on your form works), and 2× thickness for .125" plate. A sharp 90° crease concentrates all the stretch in one line of metal — that's the crack.
Bending across the lugs on thick plate. On .063"+ solid plate, the raised diamonds create hard and soft spots along the bend line. A press brake handles it; hand-bending fights it. If your project needs crisp bends in heavy plate, have it brake-formed — or better, buy the profile pre-made: our trims and moldings and corner guards are factory-formed diamond plate angles, J-caps, and H-seams, which is almost always cleaner and cheaper than bending sheet stock yourself.
Bending the wrong material. 6061-T6 tread plate will crack at radii that 3003-H22 shrugs off. If a sheet cracked on a gentle bend, you probably have T6 structural plate, not bright tread.

Technique for thin sheet: clamp between two straight boards at the bend line, and push evenly along the full length in one smooth motion — not back-and-forth flexing, which work-hardens the line and then cracks it. Bend slightly past 90° to allow for spring-back.

Fasteners: screws, rivets, and the corrosion rule

The one rule: don't put bare steel against aluminum in a wet environment. Dissimilar metals plus moisture equals galvanic corrosion — the aluminum sacrifices itself around every fastener. Indoors and dry, zinc-plated screws are fine. Outdoors, on trailers, or anywhere wet, use stainless steel or aluminum fasteners.

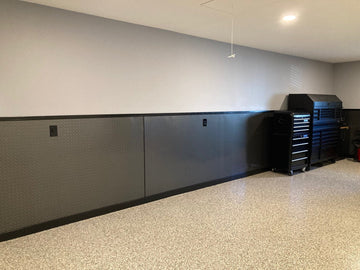

Into wood studs or plywood (garage walls, wainscot): Wall Dog zinc pan-head screws, 1-1/4". Pre-drill the aluminum 1/64" over the screw shank so the screw clamps the sheet rather than threading into it — this also gives thermal movement somewhere to go.

Into steel studs, steel trailer frames, or metal-to-metal: #8 or #10 self-drilling (Teks-style) screws. The drill point makes its own hole through the plate and the steel behind it in one pass. Use 3/4" for panel-to-frame, longer if you're through-fastening trim too. Stainless self-drillers for anything exposed to weather. Find them in our fasteners, adhesives & tape collection.

Rivets (trailers, truck bodies, toolboxes): 1/8" or 3/16" aluminum pop rivets with aluminum mandrels for a flush, permanent, vibration-proof fastening that can't back out on the road. Drill 1/64" over the rivet diameter, space 4"–6" on trailer skins. Avoid steel-body rivets on aluminum for the galvanic reason above.

Spacing: walls, every 12"–16" around the perimeter plus adhesive in the field; trailers and anything that vibrates, every 4"–8".

Adhesive: what actually sticks aluminum to walls

For wall installs, adhesive does the real holding and screws mostly clamp while it cures:

Polyurethane or hybrid-polymer construction adhesive (heavy-duty/landscape-grade tubes) is the workhorse: vertical beads every 8"–10", strong initial tack, permanent bond, small gap-filling ability over imperfect drywall.
High-bond double-sided tape — like the 1" double-sided tape we stock — is the clean-install option for trims, moldings, and panel edges: no cure time, no ooze, holds immediately.
Surface prep decides whether any of it works. Wipe the back of the sheet with isopropyl alcohol to remove mill oil (this step is skipped in 90% of failed installs). Bare or freshly-mudded drywall must be primed/painted first — adhesive on raw drywall paper just peels the paper.
Support the sheet for the adhesive's stated cure window with a few screws or painter's-tape battens.

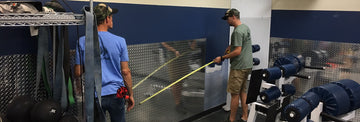

The full wall method, screw pattern, and outlet cutouts are in our step-by-step guide: How do I install diamond plate on garage walls?

Installing on a trailer or truck bed: the two extra rules

Everything above applies, plus two things vehicles add — vibration and temperature swing:

Leave expansion gaps. An 8-ft aluminum sheet grows about 1/16" across a 60°F temperature swing. Leave ~1/8" at sheet edges and butt joints, and don't hard-pin all four edges of a large sheet dead tight; slightly oversized fastener holes let the sheet move without oil-canning. Cover joints with an H-seam splice molding for a finished look that hides the gap.
Isolate aluminum from steel frames. A strip of butyl tape or a bead of sealant between the plate and a steel trailer frame blocks the galvanic couple and stops squeaks. Then rivet or self-drill through the sandwich.

Can you weld aluminum diamond plate?

Yes — solid plate welds fine with TIG or MIG using 4043 or 5356 filler, and .125" plate is a comfortable welding thickness for anyone experienced with aluminum. Three caveats: aluminum welding is genuinely harder than steel (AC TIG or a spool gun, meticulous cleaning with a stainless brush, no steel-contaminated tools); any polished or anodized surface must be ground back to bare metal at the joint or the weld will be contaminated; and .025" embossed sheet is effectively not weldable in the field — it burns through instantly. Join thin sheet mechanically (rivets, screws, adhesive, trim) instead. For most projects, a formed trim or corner guard replaces the weld entirely.

FAQ

What's the best tool to cut aluminum diamond plate? For .025"–.045": electric metal shears. For .063"–.125": a circular saw with a carbide non-ferrous blade (sheet fully supported), or a grinder with a metal-cutting disc if you don't mind filing burrs. Or have us cut it for $15 before it ships.

How do I bend diamond plate without cracking it? Use a radius (never a sharp corner) of at least 1× sheet thickness, bend in one smooth motion, and make sure you're bending 3003-class H22 tread plate — 6061-T6 structural plate cracks on tight bends.

What screws should I use for diamond plate? Wood framing and drywall: 1-1/4" Wall Dog pan-head screws — zinc is fine indoors; go stainless anywhere wet. Steel framing or trailers: #8/#10 self-drilling (Teks-style) screws, stainless outdoors. Never bare steel fasteners on aluminum in wet environments.

What adhesive sticks diamond plate to walls? Polyurethane or hybrid-polymer construction adhesive on a primed wall, with the sheet back cleaned with alcohol. High-bond double-sided tape for trims and edges.

Can you weld it? Solid plate, yes (TIG/MIG, 4043/5356 filler, surface ground clean). Embossed .025" sheet, no — join it mechanically.
