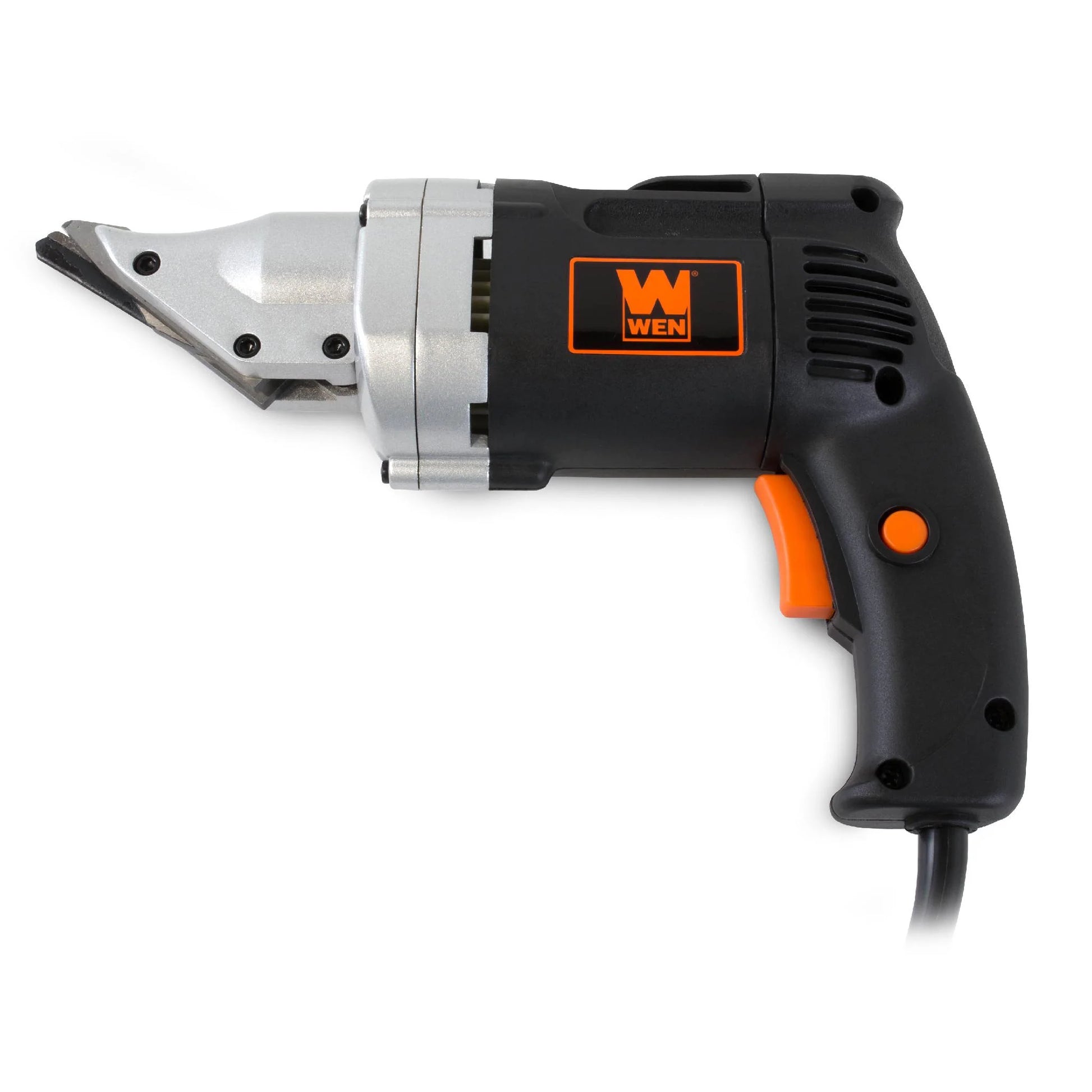

WEN 3650 Electric Swivel Head Metal Shear — Diamond Plate Cutting Tool | Cuts .025" to .045" Aluminum

The Right Tool Makes Diamond Plate Installation Fast, Clean, and Easy

Cutting aluminum diamond plate with the wrong tool is a frustrating, messy experience. Tin snips fatigue your hands on anything longer than a short cut. Grinders throw sparks, create rough edges, and are overkill for sheet material. Circular saws with metal blades are loud, aggressive, and difficult to control on thin aluminum. The WEN 3650 Variable Speed Swivel Head Electric Metal Shear is the purpose-right tool for cutting aluminum diamond plate sheets — fast, clean, controlled, and easy enough that first-time installers get professional results on the first cut.

Greg at OnlineDiamondPlate.com has personally used this shear on both .025" embossed and .045" heavy duty aluminum diamond plate and the result is the same both times — it cuts like butter. This is the tool we recommend for every diamond plate installation where on-site cutting is required on sheets up to .045" thick.

---

What It Cuts — And What It Does Not

The WEN 3650 is the recommended cutting tool for the following OnlineDiamondPlate.com sheet thicknesses:

• ✅ .025" embossed aluminum diamond plate — cuts effortlessly at low to medium speed
• ✅ .032" embossed aluminum diamond plate — clean cuts with full control
• ✅ .045" heavy duty aluminum diamond plate — handles this gauge with ease
• ❌ .063" heavy duty sheets — use a grinder or metal cutting wheel
• ❌ .125" heavy duty sheets — use a grinder or metal cutting wheel

For sheets thicker than .045", see our cutting guidance on the Heavy Duty Diamond Plate Sheet product page.

---

Straight Cuts, Curved Cuts, Irregular Shapes — All Handled

Straight Cuts

For clean straight cuts across a full sheet, use a T-square and a Sharpie to mark your cut line directly on the back of the material. The diamond plate back surface gives you a clean, flat marking surface. Follow the line with the shear from one end to the other for a perfectly straight cut every time. No saw guide, no fence, no clamping jig required.

Curved Cuts and Irregular Shapes

This is where the WEN 3650 separates itself from every other cutting method. The 360-degree swivel head rotates to any angle without repositioning your grip or the material — follow any curve, cut any radius, and work around any obstacle on the panel face. Outlet cutouts, switch plate openings, pipe penetrations, irregular panel shapes — all handled with the same tool and the same blade.

---

One Important Thing to Know Before Your First Cut

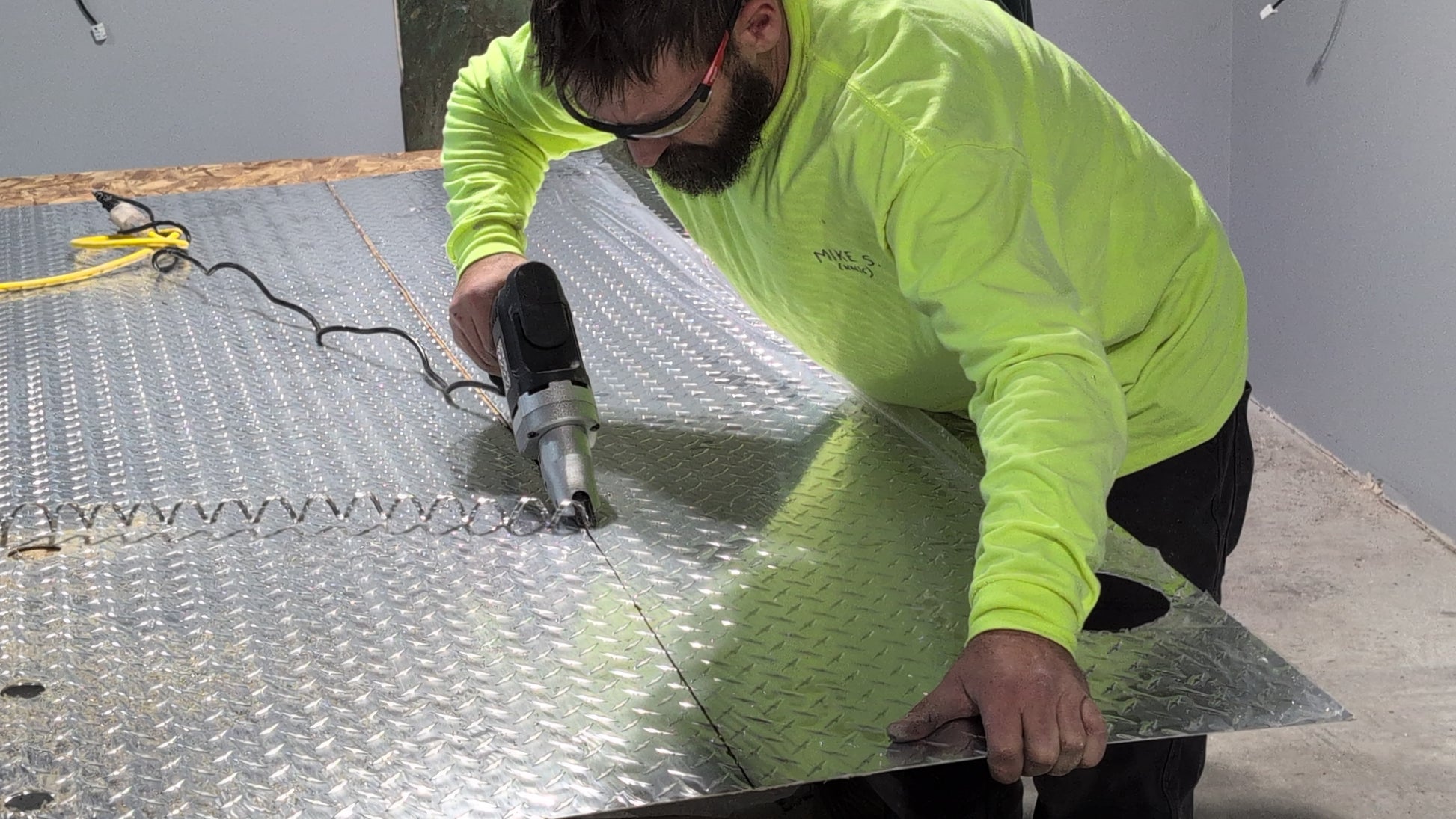

The WEN 3650 is a nibbler-style shear — it removes a strip of material approximately 3/8" (0.375") wide as it cuts. This is not a zero-kerf tool. Account for this material removal when marking your cut lines, especially on tight fits where every fraction of an inch matters. Mark your cut line on the waste side of the material — the strip that gets consumed by the shear is the portion you are removing, not the finished edge you are keeping.

Pro tip from Greg: Start slow. Press the pressure-sensitive trigger lightly to begin your cut at low speed, get the blade seated and moving in the right direction, then increase speed as you move through the material. Starting at full speed on the edge of a sheet can cause the tool to jump or wander off your line. A slow start gives you a clean, controlled entry every time.

---

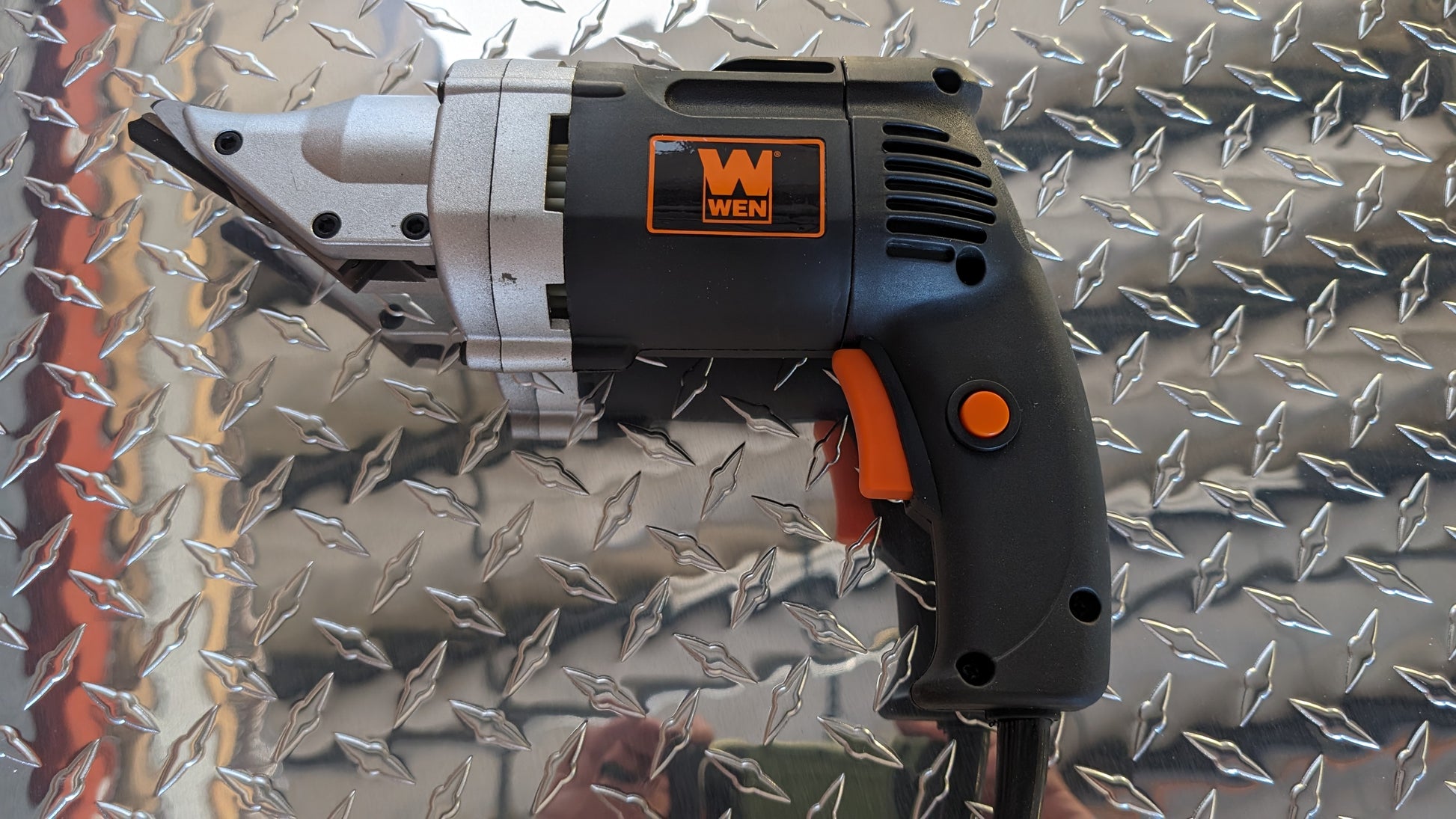

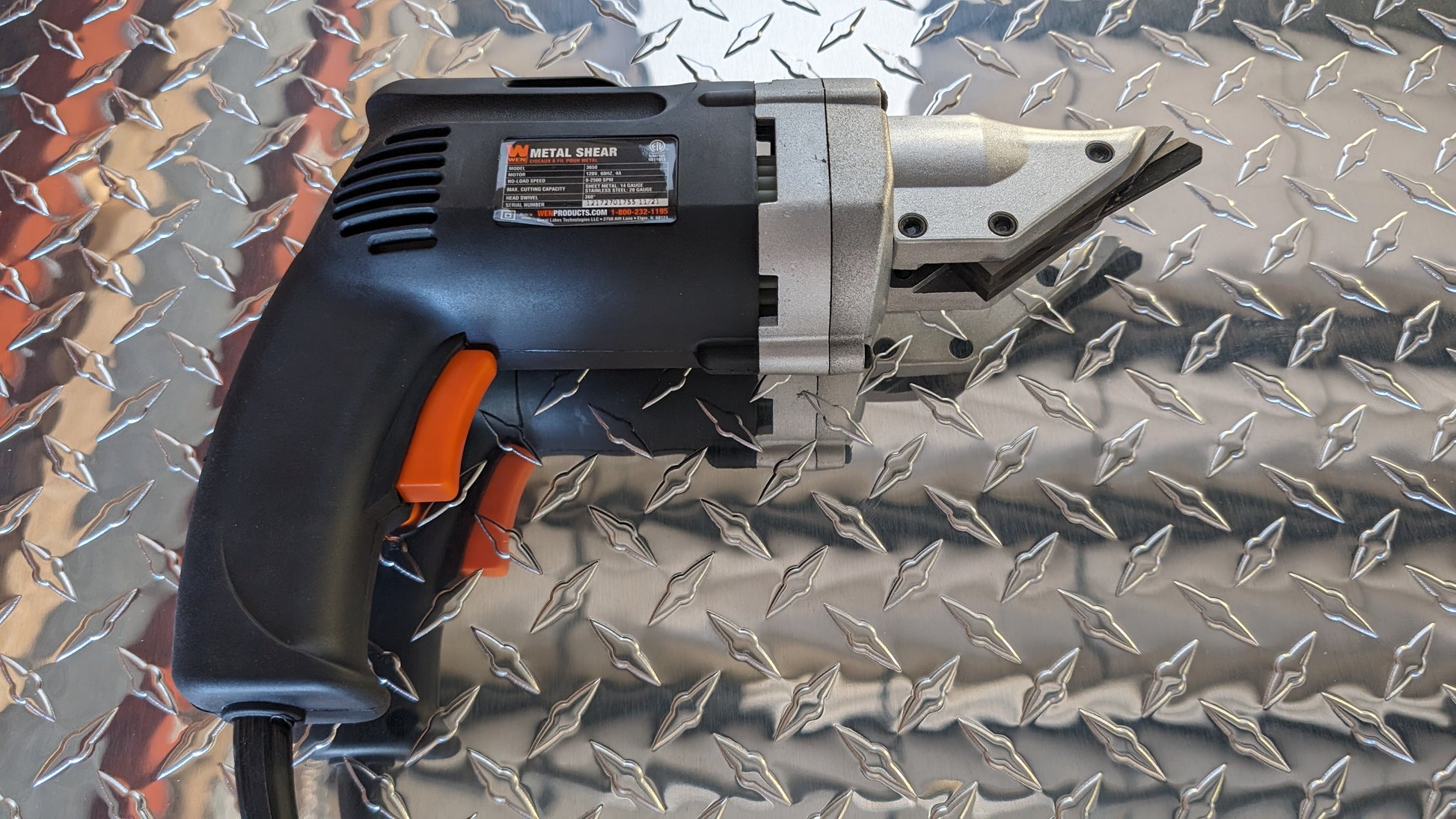

Tool Features

• Variable speed trigger — pressure-sensitive trigger adjusts cutting speed from 0 to 2,500 strokes per minute depending on how hard you press. Light pressure for slow controlled cuts. Full pressure for fast straight runs.
• 360-degree swivel head — rotates to any position to cut at any angle or direction without repositioning the tool or the workpiece. Loosen the hex screws, rotate to your desired angle, retighten, and cut.
• Speed lock button — press the trigger fully and engage the lock button to lock the tool at maximum speed for long straight cuts without holding the trigger down.

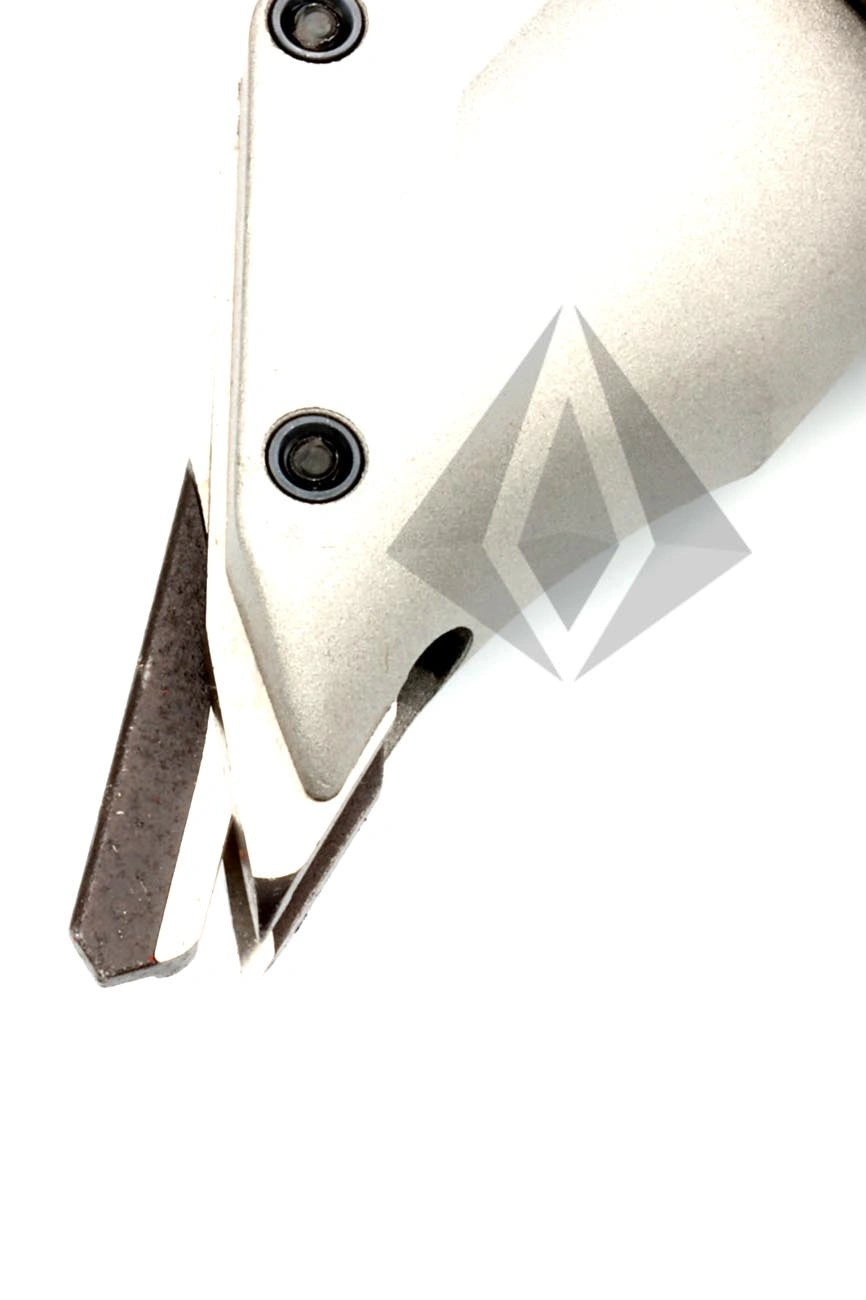

• Three-blade cutting system — three blades work together to minimize deformation of the cut edge, leaving a cleaner finished edge than single-blade alternatives.
• Lightweight design — at 4.7 lbs this is a tool you can use for an extended installation without arm fatigue. Light enough to maneuver through curves and around obstacles with full control.
• Powerful 4-amp motor — enough power for consistent performance through aluminum diamond plate without bogging down mid-cut.
• Corded 110V — plugs into any standard household outlet. No battery to charge, no runtime limit, no power fade mid-cut.

---

Compared to Other Cutting Methods

	WEN 3650 Shear (This Product)	Tin Snips	Grinder / Metal Cutting Wheel
Panel Thickness	Up to .045"	Up to .025"–.032"	.063" and .125"
Straight Cuts	✅ Fast and clean	✅ Slow and tiring	✅ Rough edge
Curved Cuts	✅ Easy — 360° swivel head	⚠️ Difficult on thicker material	❌ Not recommended
Edge Quality	Clean — minimal deformation	Clean on thin material	Rough — requires finishing
Sparks	None	None	Yes
Hand Fatigue	Low — 4.7 lb tool does the work	High on longer cuts	Medium
Cutout Capability	✅ Yes — outlets, switches, pipes	❌ Difficult	⚠️ Possible but imprecise

---

Specifications

Manufacturer	WEN
Model	3650
Motor	4 amps
Speed Range	0 – 2,500 strokes per minute (variable)
Head Rotation	360 degrees
Cutting Capacity — Aluminum	Up to .045" aluminum diamond plate
Cutting Capacity — Stainless Steel	Up to 20 gauge
Cutting Capacity — Sheet Metal	Up to 18 gauge
Kerf Width	Approximately 3/8" (0.375")
Weight	4.7 lbs
Power	Corded 110V — standard household outlet
Blade System	Three-blade cutting system
Box Contents	WEN 3650 electric swivel head shear

---

Pair This Tool With Your Diamond Plate Order

Order your sheets and this shear together and arrive on site fully equipped to cut and install in a single trip:

• .025" Embossed Aluminum Diamond Plate Sheets — Our best-selling sheet — cuts effortlessly with this shear
• .045" Heavy Duty Aluminum Diamond Plate Sheets — The thickest gauge this shear handles cleanly
• Aluminum Trim Moldings — H-Seam, J-Trim, Inside and Outside Corner profiles
• Diamond Plate Corner Guards — Inside and outside corner protection
• Diamond Plate Screws — DeWalt Wall-Dog anchors for securing panels to drywall, wood, and metal studs
• 3M 550 Construction Adhesive — For a completely fastener-free panel installation

The right tool. Clean cuts. Professional results every time.
