What thickness of diamond plate should I use for garage walls?
Use .025" embossed aluminum diamond plate for garage walls. It's the thickness we sell more of than anything else, and it's the correct answer for a physical reason: a wall panel carries no load. The drywall and studs behind the sheet do the holding — the sheet's only job is to take impacts, shed moisture, and look good. Paying for thicker plate on a wall buys you weight, freight shipping, and saw-cutting, not protection.
Here's the full decision logic, including the two situations where you should step up.
The Garage Wall Thickness Chart
| Thickness | Type | Use it on garage walls when... | 4x8 weight | Ships |
|---|---|---|---|---|
| .025" embossed | Pattern stamped into bright thin sheet | Default choice: wainscoting, accent walls, backsplashes behind workbenches — any normal garage | ~11 lbs | Rolled in a box to your door, ground carrier |
| .045" flat-backed | Flat back, diamond face — significantly more durable than .025" | The wall takes direct, repeated equipment strikes: mower decks, ATV racks, toolboxes parked against the wall | ~20 lbs | Flat |
| .063" | Tread plate | Maximum protection zones — and you still want our custom aluminum trims finishing the edges | ~29 lbs | Flat |
| .125" (1/8") | Structural plate | Never for walls. Floors, ramps, and load-bearing surfaces only — far more costly, needs saw-cutting and a helper | ~56 lbs | Flat / freight |
Why Walls Need Less Thickness Than People Buy
The most common mistake in this category is treating wall panels like trailer floors. They're different physics problems:
- A floor spans open air between cross members and bends under point loads. Thickness resists that bending, so floors genuinely need .125" plate.
- A wall panel is fully backed by drywall or plywood on studs. When a bike handle or lumber end hits it, the force transfers straight through to the wall structure. The sheet only needs to resist puncture and scratching — which .025" aluminum does easily.
The practical result: a garage lined in .025" embossed looks and performs the same as one lined in .125" plate, at a fraction of the cost — and the difference compounds at every step:
- Material: stepping from .025" to .125" puts five times the aluminum in every sheet, and aluminum is priced by weight.
- Shipping: .025" embossed rolls into our custom box and ships ground straight to your door. Rigid plate ships flat — full sheets can mean LTL freight, liftgate fees, and waiting home for a delivery window.
- Handling: a rolled .025" sheet (about 11 lbs) is a one-person carry through a doorway. A 4x8 sheet of .125" is roughly 56 lbs of sail-shaped metal — a two-person job.
- Cutting: .025" cuts with tin snips at the wall. .125" needs a metal-cutting saw, hearing protection, and deburring.
When to Step Up: The Two Honest Exceptions
Step up to .045" flat-backed when a specific wall zone takes repeated direct strikes from equipment — the wall where the mower deck swings in, the panel behind a hitch-height trailer tongue, the strip where a rolling toolbox parks. The flat back sits dead-tight to the wall and the extra material makes it significantly more durable than .025". Most garages need this on one or two zones, not the whole room.
Step up to .063" only for maximum-protection zones where you want the toughest sheet that still pairs with our custom aluminum trim moldings for clean finished edges. Beyond .063", you've left wall-protection territory and entered structural pricing for no wall benefit.
A smart hybrid many customers order: .025" embossed around the room, with a .045" flat-backed panel on the one wall that takes abuse. Same look, protection exactly where it's needed, minimum spend.
How High Should Garage Wall Panels Go?
Thickness and height decisions travel together:

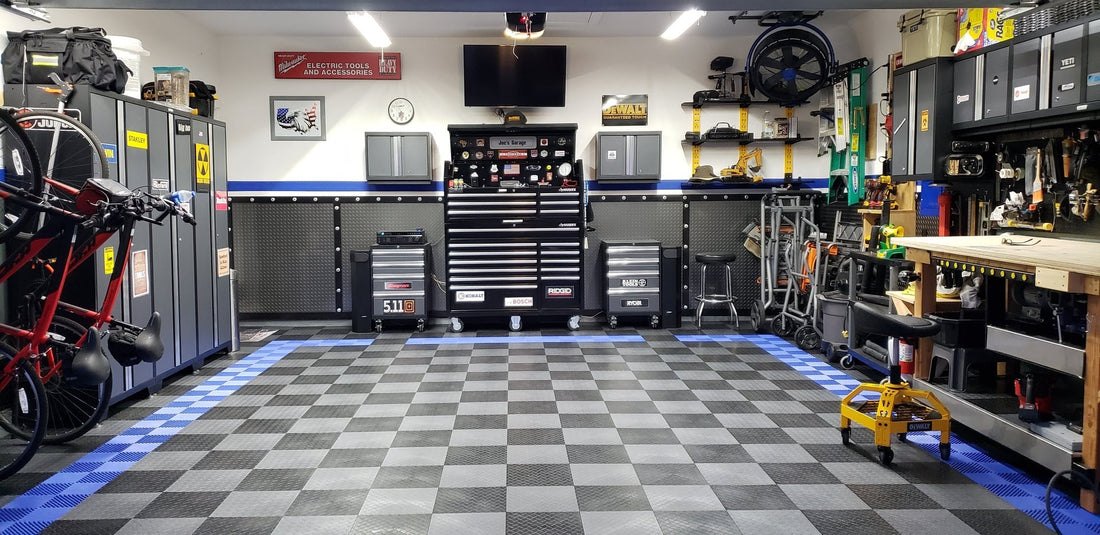

- 36" wainscot stops most impacts (door edges, bumpers, bike pedals).
- 48" wainscot is the most popular height — it matches a half-sheet cut with zero waste and covers door handles, wheelbarrow rails, and rolling-toolbox lids.
- Full-height accent walls (8' standard, or seamless with our 4x10 sheets on taller walls) are a style choice — and .025" is the only sensible thickness there.
What This Costs, Roughly
Because you pay for aluminum by weight, the wall-appropriate thickness is also the budget-friendly one. A 48"-high wainscot around a typical two-car garage runs on the order of 6–8 sheets of .025" embossed — an amount that ships to your door by ground in rolled boxes. The identical coverage in .125" plate would cost several times more in material, ship freight, and require a saw and a second set of hands, for a wall that performs no better.
Every sheet arrives with a peel-away PVC film protecting the bright finish. Leave it on through cutting, drilling, and mounting; peel it as the final step and the wall comes out flawless.
Shop .025" Embossed Sheets — ships rolled to your door
Related guides: How to install diamond plate on garage walls • How many sheets for a 2-car garage? • Aluminum diamond plate weight chart
Not sure which thickness? Order the $4.99 sample kit and feel the difference before you buy.
Frequently Asked Questions
Is .025 aluminum diamond plate thick enough for garage walls?
Yes — it's the standard for garage walls and our most-sold product. Wall panels are fully backed by the wall behind them, so they don't need the bending strength that floors do. .025" resists the impacts garage walls actually receive.
What's the difference between .025 embossed and .045 flat-backed?
.025" has the pattern stamped into thin sheet and ships rolled in a box. .045" has a flat back with a diamond face, sits dead-flat against the wall, and is significantly more durable — the right call for zones taking repeated direct equipment strikes.
Should I use .125 diamond plate on walls for maximum protection?
No. .125" is structural plate for floors and ramps. On a wall it costs several times more, requires saw-cutting and freight shipping, and protects no better than thinner sheet backed by the wall.
Can thin diamond plate dent?
Any aluminum can dent under a hard enough direct strike, but a backed .025" panel resists normal garage impacts, and the diamond pattern visually hides minor scuffs that would be obvious on flat paint. High-strike zones are what .045" flat-backed is for.
What thickness works with diamond plate trim moldings?
Our custom aluminum trims (J-channel, edge cap, corner guards) are designed to finish .025" through .063" wall sheets — the entire wall-protection range.
