Wholesale Aluminum Diamond Plate Corner Guard

Wholesale Corner Guards — Lower Delivered Cost. Professional Grade. Ready to Install.

The same .045" aluminum diamond plate corner guards available in our retail catalog — now available at wholesale pricing for contractors, installers, retailers, and commercial buyers who need volume. At wholesale quantities the delivered cost per piece drops dramatically compared to retail, and as order size increases the per-unit shipping cost continues to fall. For high-volume corner guard installations in warehouses, restaurants, gyms, commercial corridors, and multi-unit projects, wholesale is the right way to buy.

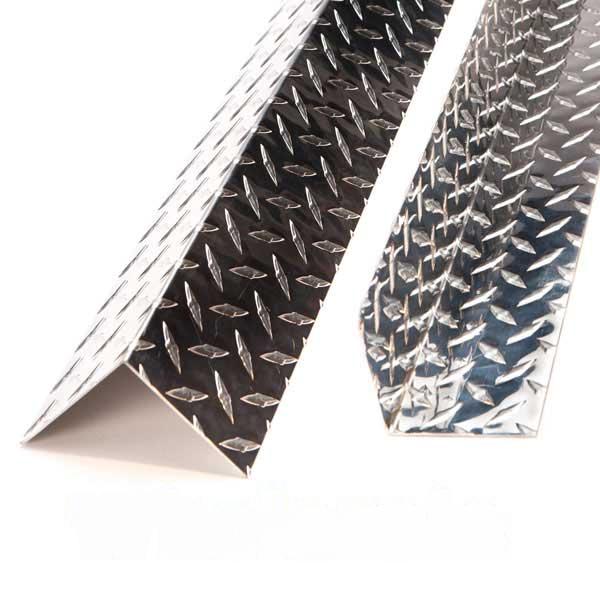

Every piece is made from .045" anodized bright polished 3003 aluminum diamond plate and ships with a PVC protective peel-off film on the face. Leave the film on during transit and installation — peel it off when the job is done and the finish underneath is pristine.

Available to wholesale accounts only. Looking for smaller quantities? Shop retail corner guards here.

---

Inside vs. Outside Corner Guards

Both inside and outside corner guards are available at wholesale in identical wing sizes and lengths. Choosing the right type depends entirely on the geometry of the corner being protected:

	Inside Corner Guard	Outside Corner Guard
Corner Type	Concave corner — where two walls meet inward	Convex corner — where two walls meet outward
Typical Locations	Room corners, hallway ends, doorway returns	Hallway corners, column edges, doorway jambs, exposed wall ends
Most Damage Prone?	Less exposed — protected by geometry	Yes — outside corners take the most direct impact from carts, forklifts, and equipment
Wing Sizes Available	2"x2" or 3"x3"	2"x2" or 3"x3"
Lengths Available	4' and 8'	4' and 8'

---

2"x2" vs. 3"x3" Wing Size

Wing size is the measurement of how far each leg of the corner guard extends onto the wall surface from the corner point. Both sizes provide the same level of corner protection — the choice is based on project requirements and preference:

	2" x 2" Wings	3" x 3" Wings
Wall Coverage Per Side	2" from corner on each side	3" from corner on each side
Best For	Standard wall corners, tighter spaces, cleaner minimal look	High-impact areas, wider panel coverage, more visible diamond plate presence
Panel Coverage	Covers panel edges up to 2" wide at corner	Covers panel edges up to 3" wide at corner

When in doubt, the 2"x2" is the most common choice for standard wall corner protection. Choose 3"x3" when you want more visible coverage, are working in a high-traffic or high-impact environment, or need to cover a wider panel edge gap at the corner.

---

Wholesale Minimum Order Requirements

The 20-piece minimum applies per individual variant — meaning each specific combination of corner type, wing size, and length must be ordered in quantities of 20 or more. Wing sizes cannot be mixed to meet the minimum.

Example	Valid?
20 x Outside 2"x2" 4' + 20 x Outside 2"x2" 8'	✅ Valid — each variant meets the 20-piece minimum
20 x Inside 3"x3" 4' + 20 x Outside 3"x3" 4'	✅ Valid — each variant meets the 20-piece minimum
10 x Outside 2"x2" 4' + 10 x Outside 3"x3" 4'	❌ Invalid — wing sizes cannot be mixed to meet the minimum
10 x Inside 2"x2" 4' + 10 x Inside 2"x2" 8'	❌ Invalid — each length variant requires its own 20-piece minimum

Contact us before placing your order if you have questions about whether your order configuration meets wholesale minimums.

---

The Wholesale Advantage

Three reasons wholesale corner guards make sense for volume buyers:

• Lower per-piece pricing. Wholesale pricing is significantly lower than retail on a per-piece basis — the more you buy the better the unit economics on your project.
• Lower delivered cost per unit. This is the key driver. Shipping costs drop dramatically on a per-unit basis as order quantity increases. A large wholesale order delivers to your job site or warehouse at a fraction of the per-piece freight cost of multiple smaller retail orders.
• Fast fulfillment. Wholesale corner guard orders ship quickly so your project timeline stays on track.

---

Where Customers Install Diamond Plate Corner Guards

Corner guards are used in any environment where corners take repeated abuse or where constant repainting and drywall repair has become an ongoing cost and frustration:

• Warehouses and distribution centers — forklift and pallet jack traffic destroys unprotected corners
• Garages and shops — vehicles, equipment, and tools take a constant toll
• Restaurants and commercial kitchens — carts, equipment, and foot traffic in tight spaces
• Loading docks and receiving areas — high-impact environments with constant equipment movement
• Gyms and fitness centers — equipment movement and high foot traffic
• Hallways and corridors — outside corners at hallway intersections are among the most commonly damaged surfaces in any commercial building
• Multi-unit residential and commercial construction — spec and install once across multiple units for consistent corner protection throughout

---

With or Without Diamond Plate Wall Panels

Wholesale corner guards work equally well in two scenarios:

Standalone corner protection on bare walls. No diamond plate panels required. Install directly onto the wall corner for immediate impact protection and a finished professional appearance. The fastest and most cost-effective way to protect high-traffic corners at scale without paneling entire walls.

As finishing trim on diamond plate panel installations. Where two diamond plate wall panels meet at a corner, the corner guard covers the raw panel edges at the corner joint for a clean finished appearance. Compatible with all OnlineDiamondPlate.com panel thicknesses — .025", .032", .045", .063", and .125". The corner guard wings fit over the raw panel edges on both sides of the corner, eliminating exposed cut edges and completing the installation cleanly.

---

Installation

Wholesale corner guards install using the same methods as our retail corner guards and aluminum trim molding profiles:

• Finish nails — driven through the wing face into the wall. Fast and clean for wood stud framing.
• Screws — driven through the wing face into studs, drywall, or masonry. Use our Diamond Plate Screws for installations into drywall or metal studs where stud alignment is not guaranteed.
• Construction adhesive — apply 3M 550 Construction Adhesive to the back of the wings and press firmly to the wall surface. Ideal for concrete, masonry, and any substrate where drilling or nailing is not practical.

Cutting to Length On Site

Both 4' and 8' lengths can be cut down to a custom dimension on site. The recommended tool is a miter saw with a metal cutting blade. Secure the corner guard firmly before cutting and use appropriate eye and hearing protection. The .045" aluminum cuts cleanly with the right blade.

---

Shipping

Wholesale corner guard orders ship via LTL ground freight or standard ground parcel service depending on order size and delivery address. Unlike the wholesale sheet pallets, liftgate delivery is available on corner guard orders for addresses without a loading dock or forklift. Contact us before ordering if you have questions about the best shipping option for your delivery address and order quantity.

---

Product Specifications

Material	.045" aluminum diamond plate — 3003 alloy
Finish	Anodized bright polished (mirror finish)
Protective Film	PVC peel-off film included on all pieces
Corner Types	Inside and outside
Wing Sizes	2"x2" or 3"x3"
Available Lengths	4' and 8'
Compatible Panel Thickness	.025", .032", .045", .063", and .125"
Installation Methods	Finish nails, screws, or construction adhesive
On-Site Cutting	Miter saw with metal cutting blade
Minimum Order	20 pieces per variant — no mixing of wing sizes to meet minimum
Availability	Wholesale accounts only

---

Complete Your Wholesale Installation

• Wholesale Embossed Diamond Plate Sheets — .025" sheets in four finishes — 20-piece minimum per variant
• Wholesale H-Seam Splice Molding — For joining panels at vertical and horizontal seams
• Wholesale Inside Corner Trim — Lighter gauge aluminum trim for inside corners
• Wholesale Outside Corner Trim — Lighter gauge aluminum trim for outside corners
• Wholesale J-Trim Edge Cap — For finishing exposed panel edges at walls, ceilings, and door frames
• Diamond Plate Screws — DeWalt Wall-Dog anchors for securing panels and trim to drywall, wood, and metal studs
• 3M 550 Construction Adhesive — For a completely fastener-free installation

Wholesale pricing. Lower delivered cost. Professional grade corner protection at scale.
